Earthquake Tracker

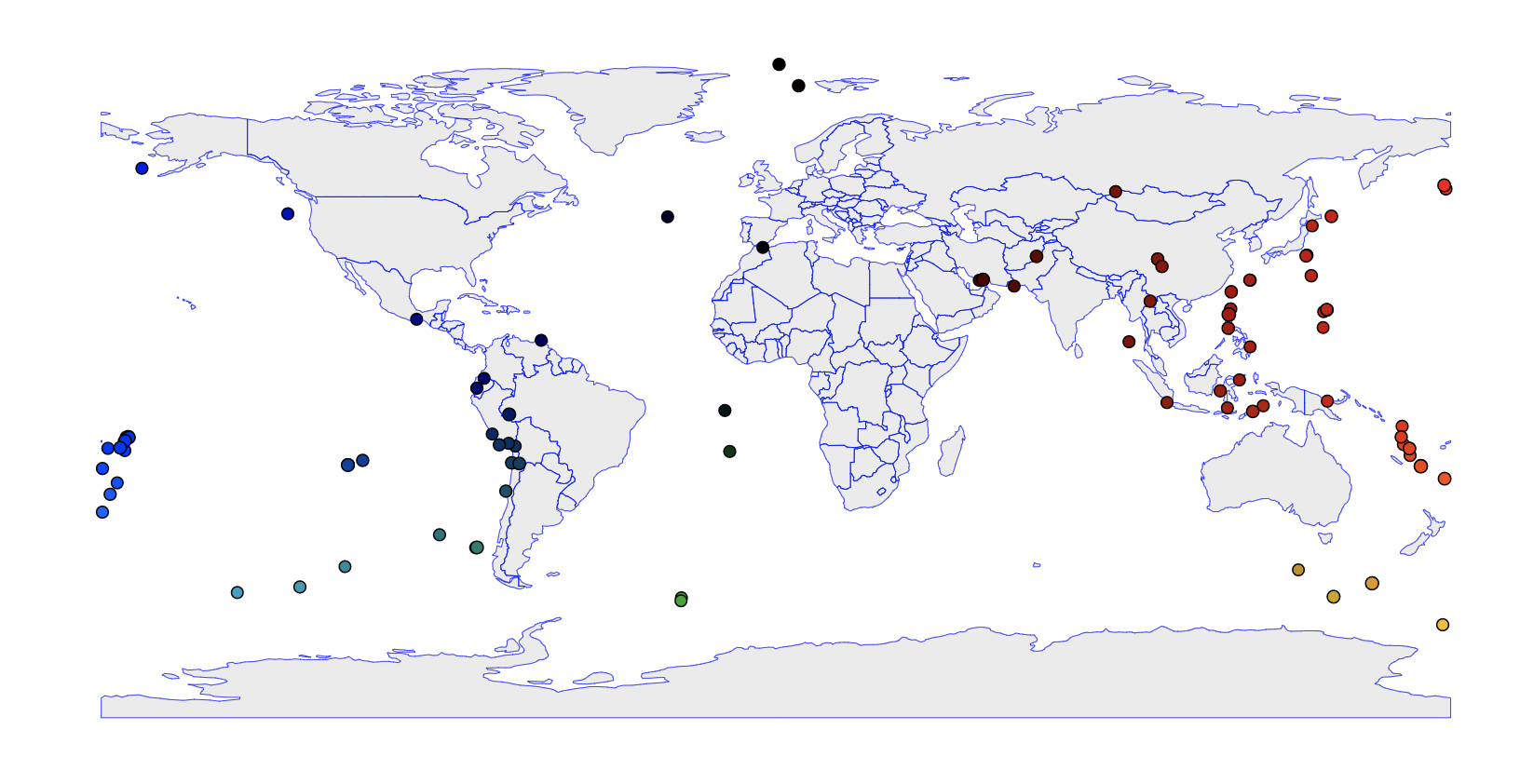

Example Output

Learning Outcomes

  1. Data Visualization
  2. Graph Traversal
  3. Sorting
  4. Conditions

Goals

The purpose of this assignment is to learn to

  1. Access and manipulate remote data through BRIDGES.
  2. Manipulate a GraphAdjList object.
  3. Display a location on a map.
  4. Optionally, perform basic graph operation (connected component)

You will be building a visualization that looks like in the figure above.

Description

Task

Grab recent earthquake data and build a graph representing the locations of the 100 strongest earthquakes.

Basic

  1. Open your scaffolded code.
  2. Plug in your credentials.
  3. Get the most recent 10,000 earthquakes.
  4. Only retain the 100 highest magnitude earthquakes.

Place Earthquakes on the map

  1. Create a graph where each earthquake is a vertex.
  2. Add no edges for now.
  3. Pin earthquakes at their longitude and latitude.
  4. Tweak the appearance of vertices if you want (e.g., use a different symbols for earthquake in Hawaii or Alaska).
  5. Compile, run, and visualize.

Build a graph based on distances

  1. For each pair of earthquakes:
    1. Compute the distance using calcDistance.
    2. If the earthquakes are closer than 500km, add an edge between them.
  2. Compile, run, and visualize.

Show just the graph

  1. Deactivate the map overlay (already done in the scaffolding).
  2. Unpin the vertices by setting their location to infinity.
  3. Compile, run, and visualize.

(Optionally) Compute connected component

  1. unmark all vertices
  2. find an unmarked vertex
  3. flood its component and color its vertices
  4. go back to 2 as long as there are unmarked vertices
  5. Compile, run, and visualize.
