Layers - Generating layers of pixels from a 2D Grid

Goals

  1. Working with 2D grids to generating pixels in a certain order
  2. Indexing into 2D arrays and ensuring bounds are not violated
  3. CS concepts: 2D array addressing

Source

This assignment can be thought of as a good exercise for 2D indexing and has an application for searching for closest point/entity within a 2D map, eg., finding the nearest restaurant from a given location.

Description

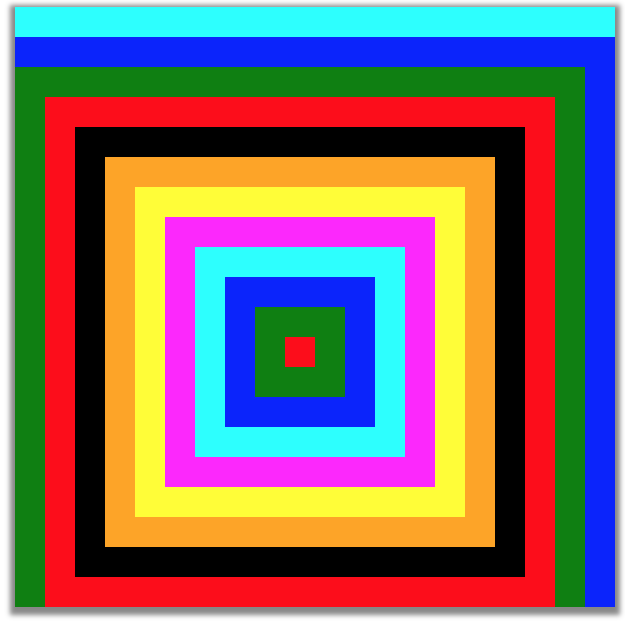

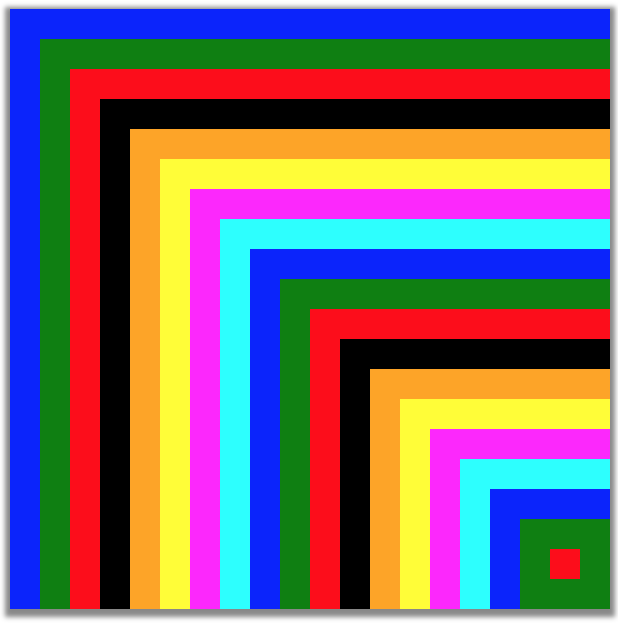

As part of the more interesting problem of finding the nearest location of a given entity, this assignment uses a 2D grid as a search structure to accelerate the search. A uniform 2D grid is overlaid on the underlying map and entities are stored in grid cells. While the closest problem is solved in the more complete assignment, this assignment helps early CS students to generate an efficient search path, i.e., the search begins from the start location and identifies cells around it, layer by layer. This is an excellent exercise for practicing 2D indexing and making sure that the algorithm always works within the bounds of the array. The output is shown as a visualization using the ColorGrid type in BRIDGES. Below we show two examples of generating the layers, with the starting cell in red, which can be any pixel in the grid.

Algorithm To Determine the layers:

You can start from the starting cell (which is input to the algorithm) and start generating layers from inside out, i.e., the first layer will be the 8 cells surrouding the start cell (unless its on the boundary, in which case there wwill be fewer), then look at the second layer's neighbors and so on until the the boundary of the grid is reached. The above examples show the layers generated starting from a central cell and one on the boundary. The key is to ensure you never run out of the grid. The visualization, that uses a Color Grid provides the 2D array structure and produces a nice visualization. Here we color each layer in a different color.

Tasks

  1. In the main program, you do the initializations for Bridges and set up the color grid of some size (limit is HD resolution).

  2. All of the work will be done by the layer generating algorithm, which will first mark the start cell and for each layer (layer number can be as large as the grid width or height) you identify the neighbors. This is done in 4 parts: identify the top row neighbors, then the bottom row neighbirs and then the left and right columns. The simpler version allows existing cells to be visited more than once.

  3. You can optimize the algorithm and ensure each cell is visited exactly once. For instance, after you visit the top and bottom row neighbors, the left and right columns will have 1 fewer cell to visit. When the algorithm gets close to the boundary, you need to ensure if the neighbors do exist or not and appropriately adjust for that. Any of the 2 rows or columns can be missing as the algorithm gets close to the boundary. While this is trickier to implement, this would be an excellent way to think through 2D indexing.

  4. As you identify each cell in a layer, mark the colorgrid entry with a color for that layer. Thus, once your algorithm completes normally, you can check the visualization to see if the layers were computed correctly! An easy way to debug!

  5. You might want have a destination cell in a chosen color. When that cell is reached, the program can output the number of cells visited and display the visualization.

Variants

One variant to the assignment would be to start from the outer layers and work inwards. Or an assignment can simply start with the normal 2 loops to visit all elements of the grid and then attempt the layers algorithms.
