Voronoi Diagrams - Determining the Voronoi Regions of a Set of Points in a 2D Plane

Goals/Learning Objectives

  1. Use of Loops and Conditionals
  2. Compute proximal regions of a set of sites and display them using a brute force approach
  3. Application to Delaunay triangulations, useful in graphics, robotics

Source

This assignment is adapted from a **Nifty assignment from 2016 proposed by Baker Franke. See **Source

Reference

Wikipedia, https://en.wikipedia.org/wiki/Voronoi_diagram Wikipedia:

Description

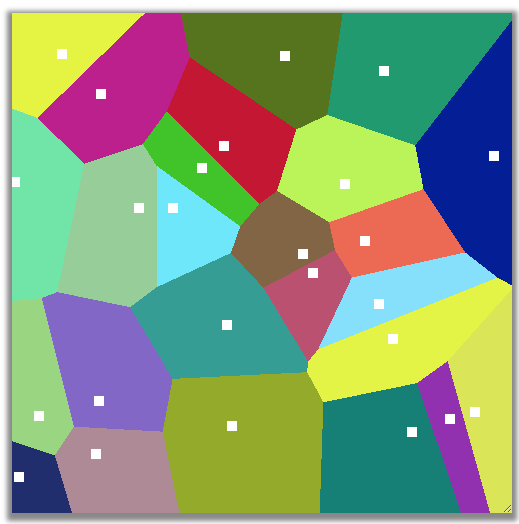

In this project, you are building a Voronoi Diagram of a set of sites in the 2D planeusing a brute-force approach. The Voronoi diagram is a partition of a plane into regions such that all points in a region are closer to Voronoi site (or object) than any other site. You will demonstrate this on a 2D grid of points and use Euclidean distances to compute proximity. Example outputs are shown below. The white squares are the Voronoi sites.

Algorithm To Determine the Path:

The brute-force algorithm is straight forward and consists of the following steps

  1. generate sites Given a 2D grid representing a planar region, generat a set of 2D points within the region. You can generate these points randomly or through user input. Keep these in a list as each of these points willi be part of a Voronoi region

  2. Compute Distance between points You will need to be able to compute a distance between a point on the grid and a Voronoi site. You can use any distance metric, for instance Euclidean distance. You only need the distance squared, as we are only comparing distances

3 Determine the Voronoi regions You will use a brute force approach. Loop through each point in the grid and compute each grid point's distance to each Voronoi site. Record the smallest distance in a data structure and the associated Voronoi site's index. At the end of this process, you will have a distance map with indices of sites, which are proxies for the Voronoi region

  1. Visualize the Voronoi Diagram Use the BRIDGES ColorGrid object to view the Voronoi regions and the sites. Generate color for each Voronoi region (can generate it randomly with an (R,G,B) for each each region. Now iterate through the distance map and for each grid point, set the color corresponding to the site index in the color grid.

    You will also mark the sites in each region. Loop through the sites, and use a constant color to mark the site in each region (the white squares in the figure above are the Voronoi sites)

    Visualize your Voronoi diagram using BRIDGES.

  2. Testing/Error Checking Make the sites a bit larger by coloring a small square of pixels, as shown above. But make sure you dont run outside the grid in doing so! Vary the number of sites and grid size to get nice smooth reagion boundaries (the above image was done with a grid size fo 500x500 and 25 sites

Extensions

If you want to identify the points that make up the boundaries of the region, how would you do that? Think in terms of image processing and use the distance map you created in your program.
