Assignment 86 - DNA Sequence Alignment and Similarity Clustering

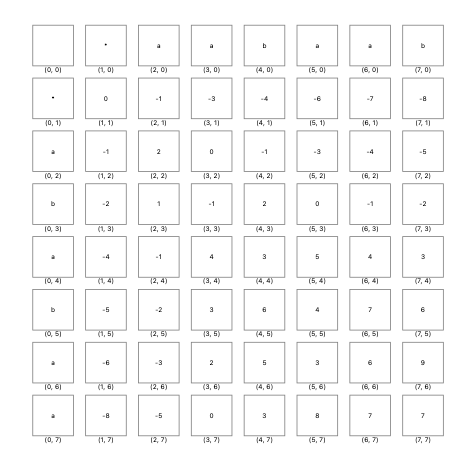

Part of the tree cluster Needlemen-Wunch Score on a 2 alphabet example

Learning Outcomes

The purpose of this assignment (inspired by a SIGCSE Nifty assignment) is to compute the similarity of 70 organisms using their DNA sequences and build a resulting tree or dendrogram that displays their similarities.

1. File I/O (read the provided data files)
2. String processing (DNA sequence comparison using the Needleman-Wunch alg. to compute a score
3. Algorithm Design:
   1. Brute Force (single link clustering)
   2. Minimum Spanning Tree (Kruskal's alg for computing disjoint sets)
4. Data Structures: lists, dictionaries, binary tree, strings

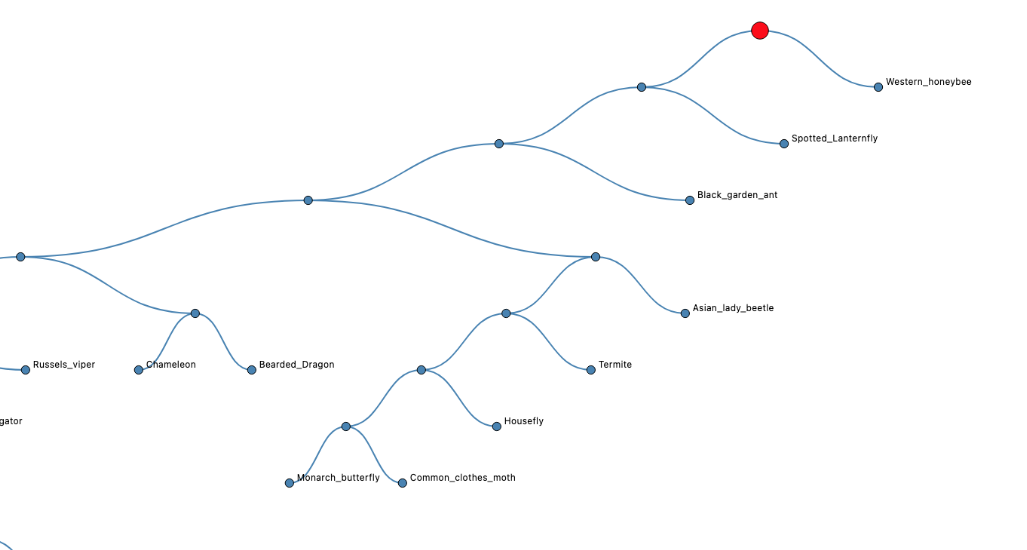

Example Output

You will generate a visualization that looks like the figure above.

Steps

1. Read the input data files (organisms, DNA sequences, BLOSUM tables)
2. Implement the Needleman-Wunsch algorithm for similarity computation
3. Implement a single-linkage clustering algorithm (exhaustive search) to group species with similar comparison scores
4. Implement Kruskal's MST algorith for more efficient clustering.
5. Create a Binary Tree using BRIDGES to display the clustering, with unique species as the leaf nodes and clusters represented by internal nodes.

Help

for Java

BinaryTree Class

for C++

BinaryTree Class

For Python

BinaryTree Class
