Assignment 9 - Shortest Path in Real Cities

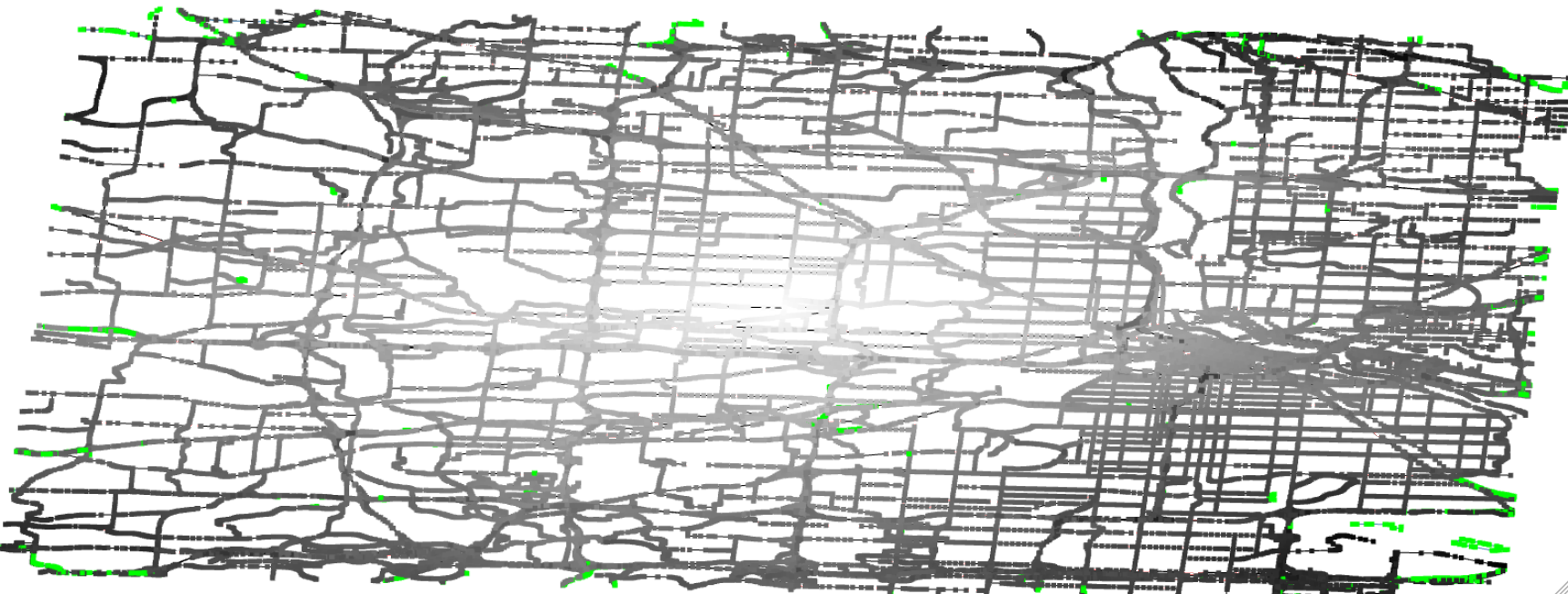

Example Output

Learning Outcomes

  1. Dijkstra's Alogrithm
  2. Hashmaps
  3. Encapsulation

Goals

Implement Dijkstra's algorithm and run it on a real world scenario: your city's map.

Tasks

  1. Get map information for your city using Bridges API: DataSource.getOSMData()

  2. Build a graph for your city using the edge data you just obtained (or use Bridges builtin graph build OSMData.getGraph). Render that map using Bridges.

  3. Find the closest vertex to the center of your map to be used as the source vertex. You can get coordinates using OSMVertex.getLatitude() and OSMVertex.getLongitude(). You can color that vertex in the map to see if the calculation is correct.

  4. Compute shortest path from the source vertex by implementing a shortest path algorithm such as Dijkstra's algorithm.

  5. Color the map based on their distance from the source vertex.

Variants

One can see the complexity of the algorithm by running larger and larger maps. You can plot the runtime of the algorithm as a function of the size of the graph (nb vertices or edges) by using LineChart.

Which priority queue did you use to compute Dijkstra's algorithm? Different queues can be used that lead to simpler or more complex implementation. The two most common implementation are to use a Sorted Array as a priority queue, to use a min-Heap, or to use a Fibonnacci Heap. Implement them and compute runtime for graphs of different scales. You can show the runtime using the LineChart feature of Bridges.

Identifying the vertex the closest to a coordinate is a good application for using quad-trees.

Extensions

Help

For C++

Bridges documentation

GraphAdjList documentation

OSMData documentation

ShortestPathBenchmark documentation

DataSource documentation

For Java

Bridges documentation

GraphAdjList documentation

OSMData documentation

ShortestPathBenchmark documentation

DataSource documentation

For Python

Bridges documentation

GraphAdjList documentation

OSMData documentation

ShortestPathBenchmark documentation
