#include <Symbol.h>

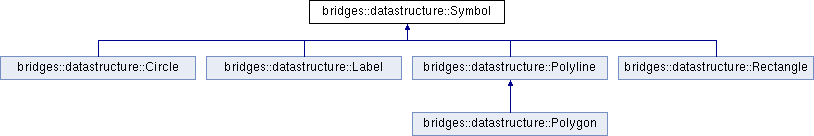

Inheritance diagram for bridges::datastructure::Symbol:

Detailed Description

This is an abstract class for deriving a number of Symbol shape objects, for use in a SymbolCollection. Symbols correspond to a simplified subset of SVG paths and shapes for custom visual representations in BRIDGES.

Currently shapes supported are rectangle, circle, polygon, label; each shape has a name, location (x, y) and appropriate geometric and non-geometric attributes

Author: David Burlinson, Kalpathi Subramanian

Date: 12/24/18, 7/12/19

Public Member Functions
	Symbol ()

virtual const string	getSymbolRepresentation () const =0

virtual vector< float >	getDimensions () const =0

	Symbol (string symb)

int	getIdentifier ()

void	setLabel (string lbl)

string	getLabel () const

void	setFillColor (Color c)

void	setFillColor (string c)

Color	getFillColor ()

void	setStrokeColor (Color c)

void	setStrokeColor (string c)

Color	getStrokeColor ()

void	setStrokeWidth (float strk_width)

float	getStrokeWidth ()

void	setOpacity (float op)

float	getOpacity ()

void	setStrokeDash (int dash)

int	getStrokeDash ()

void	setLocation (int x, int y)

void	setCenter (float x, float y)

void	setLocation (float x, float y)

const float *	getLocation () const

string	getName () const

Protected Member Functions
void	setShapeType (string s)
	Set the shape type. More...

string	getShapeType () const

void	translatePoint (float *pt, float tx, float ty)
	Translate a 2D point. More...

void	scalePoint (float *pt, float sx, float sy)
	Scale a 2D point. More...

void	rotatePoint (float *pt, float angle)
	Rotate a 2D point (about Z) More...

const string	getSymbolAttributeRepresentation () const

Constructor & Destructor Documentation

◆ Symbol() [1/2]

bridges::datastructure::Symbol::Symbol ( )

inline

◆ Symbol() [2/2]

bridges::datastructure::Symbol::Symbol ( string symb )

inline

create a symbole of type "symb"

Member Function Documentation

◆ getDimensions()

virtual vector<float> bridges::datastructure::Symbol::getDimensions ( ) const

pure virtual

method to get the bounding box (dimensions) of the shape

Implemented in bridges::datastructure::Polyline, bridges::datastructure::Label, bridges::datastructure::Rectangle, and bridges::datastructure::Circle.

◆ getFillColor()

Color bridges::datastructure::Symbol::getFillColor ( )

inline

This method gets fill color

Returns: fill color

◆ getIdentifier()

int bridges::datastructure::Symbol::getIdentifier ( )

inline

Maintains unique identifiers of symbols and returns the Symbol's unique identifier

Returns: the identifier

◆ getLabel()

string bridges::datastructure::Symbol::getLabel ( ) const

inline

Get the symbol label

Returns: the label

◆ getLocation()

const float* bridges::datastructure::Symbol::getLocation ( ) const

inline

This method gets the symbol location

Returns: location (x, y) of the symbol

◆ getName()

string bridges::datastructure::Symbol::getName ( ) const

inline

This method gets the name of the symbol

Returns: name shape name

◆ getOpacity()

float bridges::datastructure::Symbol::getOpacity ( )

inline

This method gets symbol opacity

Returns: symbol opacity

◆ getShapeType()

string bridges::datastructure::Symbol::getShapeType ( ) const

inlineprotected

Get the symbol label

Returns: the shape type

◆ getStrokeColor()

Color bridges::datastructure::Symbol::getStrokeColor ( )

inline

This method gets stroke color

Returns: stroke color

◆ getStrokeDash()

int bridges::datastructure::Symbol::getStrokeDash ( )

inline

This method gets stroke dash level

Returns: stroke dash level

◆ getStrokeWidth()

float bridges::datastructure::Symbol::getStrokeWidth ( )

inline

This method gets stroke width

Returns: stroke width

◆ getSymbolAttributeRepresentation()

const string bridges::datastructure::Symbol::getSymbolAttributeRepresentation ( ) const

inlineprotected

This method gets the JSON representation of all of the symbol attributes

Returns: JSON string of symbol attributes

◆ getSymbolRepresentation()

virtual const string bridges::datastructure::Symbol::getSymbolRepresentation ( ) const

pure virtual

virtual Method to get the JSON representation of the symbol

Implemented in bridges::datastructure::Polyline, bridges::datastructure::Rectangle, bridges::datastructure::Label, and bridges::datastructure::Circle.

◆ rotatePoint()

void bridges::datastructure::Symbol::rotatePoint	(	float *	pt,
		float	angle
	)

inlineprotected

Rotate a 2D point (about Z)

Parameters

pt	2D point (x, y)
angle	rotation angle in degrees (positive is counter clockwise, negative is clockwise)

◆ scalePoint()

void bridges::datastructure::Symbol::scalePoint	(	float *	pt,
		float	sx,
		float	sy
	)

inlineprotected

Scale a 2D point.

Parameters

pt	2D point (x, y)
sx,sy	scale factors along each axis

◆ setCenter()

void bridges::datastructure::Symbol::setCenter	(	float	x,
		float	y
	)

inline

This method sets the symbol location

Parameters

x	x coordinate
y	y coordinate

◆ setFillColor() [1/2]

void bridges::datastructure::Symbol::setFillColor ( Color c )

inline

This method sets the symbol fill color

Parameters

c	the color to set

◆ setFillColor() [2/2]

void bridges::datastructure::Symbol::setFillColor ( string c )

inline

This method sets the symbol fill color

Parameters

c	the named color to set

◆ setLabel()

void bridges::datastructure::Symbol::setLabel ( string lbl )

inline

This method sets the symbol label

Parameters

lbl	the label to set

◆ setLocation() [1/2]

void bridges::datastructure::Symbol::setLocation	(	int	x,
		int	y
	)

inline

This method sets the symbol location

Parameters

x	x coordinate
y	y coordinate

◆ setLocation() [2/2]

void bridges::datastructure::Symbol::setLocation	(	float	x,
		float	y
	)

inline

This method sets the ssymbol location

Parameters

x	x coordinate
y	y coordinate

◆ setOpacity()

void bridges::datastructure::Symbol::setOpacity ( float op )

inline

This method sets the symbol opacity

Parameters

op	the opacity to set

◆ setShapeType()

void bridges::datastructure::Symbol::setShapeType ( string s )

inlineprotected

Set the shape type.

Parameters

s	shape type to set

◆ setStrokeColor() [1/2]

void bridges::datastructure::Symbol::setStrokeColor ( Color c )

inline

This method sets the symbol stroke color

Parameters

c	the color to set

◆ setStrokeColor() [2/2]

void bridges::datastructure::Symbol::setStrokeColor ( string c )

inline

This method sets the symbol stroke color

Parameters

c	the named color to set

◆ setStrokeDash()

void bridges::datastructure::Symbol::setStrokeDash ( int dash )

inline

This method sets the stroke dash level

Parameters

dash	dash level

◆ setStrokeWidth()

void bridges::datastructure::Symbol::setStrokeWidth ( float strk_width )

inline

This method sets the symbol stroke width

Parameters

strk_width the stroke width to set

◆ translatePoint()

void bridges::datastructure::Symbol::translatePoint	(	float *	pt,
		float	tx,
		float	ty
	)

inlineprotected

Translate a 2D point.

Parameters

pt	2D point (x, y)
tx,ty	translation vector

The documentation for this class was generated from the following file:
