bridges::datastructure::BTElement< E > Class Template Reference

#include <BTElement.h>

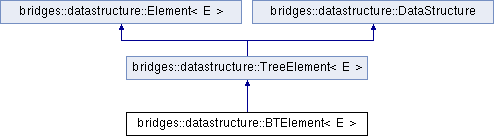

Inheritance diagram for bridges::datastructure::BTElement< E >:

Detailed Description

template<typename E>
class bridges::datastructure::BTElement< E >

This class can be used to create binary tree elements, derived from TreeElement.

This class can be used to create binary tree elements, with left and right subtrees

Parameters

E	the application data type

Author

Kalpathi Subramanian

Date

6/12/15

Public Member Functions
	BTElement (BTElement *l, BTElement *r, const E &e=E(), const string &lab=string())
	Constructs a BTElement with the provided value, label, left and right BTElements. More...
	BTElement (const E &e=E(), const string &lab=string())
	Constructs a BTElement with the provided value and label, setting the left and right BTElement to nullptr. More...
virtual const string	getDStype () const override
virtual BTElement *	getLeft ()
virtual const BTElement *	getLeft () const
void	setLeft (BTElement *l)
virtual BTElement *	getRight ()
virtual const BTElement *	getRight () const
void	setRight (BTElement *r)
Public Member Functions inherited from bridges::datastructure::TreeElement< E >
	TreeElement (const E &e=E(), const string &lab=string())
	Construct a TreeElement from given values. More...
vector< TreeElement * > &	getChildren ()
	Get the children of this node. More...
const vector< TreeElement * > &	getChildren () const
	Get the children of this node. More...
TreeElement *	getChild (const int &n)
	Gets the nth child of this node. More...
const TreeElement *	getChild (const int &n) const
	Gets the nth child of this node - constant version. More...
void	addChild (TreeElement *child)
	Adds a child to children. More...
void	setChild (const size_t &index, TreeElement *kid)
	Sets child at index to "kid". More...
Public Member Functions inherited from bridges::datastructure::Element< E >
	Element (const E &val=E(), const string &lab=string())
	Element (const Element &e)
Element &	operator= (const Element &e)
E &	operator= (E const &e)
virtual	~Element ()
ElementVisualizer *	getVisualizer ()
	Get the element visualizer object. More...
const ElementVisualizer *	getVisualizer () const
	Get the element visualizer object - constant version. More...
LinkVisualizer *	getLinkVisualizer (const Element *el)
	Returns the LinkVisualizer of element. More...
LinkVisualizer *	getLinkVisualizer (const Element *el) const
	Returns the LinkVisualizer of element. More...
string const &	getLabel () const
	Gets the label of this element. More...
void	setLabel (const string &lab)
	Sets label of this element. More...
E const &	getValue () const
	Gets the object held in the generic object E. More...
E &	getValue ()
	Gets the object held in the generic object E. More...
void	setValue (const E &val)
	Sets generic object to "val". More...
void	setSize (const double &sz)
	Sets size of the element. More...
double	getSize () const
	Get element size. More...
void	setColor (const Color &col)
	Set the color of the Element. More...
void	setColor (const string col)
	Set the color by name. More...
Color	getColor () const
	Get the current color of the element. More...
void	setOpacity (double opacity)
	Set opacity of element - use the 4th color component. More...
double	getOpacity ()
void	setShape (const Shape &shp)
	Set the shape of the element. More...
Shape	getShape () const
	Returns the shape of the element. More...
void	setLocation (const double &locX, const double &locY)
	Sets the location attributes of an element. More...
double	getLocationX () const
	Gets the X coordinate of the location. More...
double	getLocationY () const
	Gets the Y coordinate of the location. More...
Public Member Functions inherited from bridges::datastructure::DataStructure
virtual	~DataStructure ()=default

Additional Inherited Members
Protected Member Functions inherited from bridges::datastructure::Element< E >
virtual const string	getElementRepresentation () const
	Gets the JSON string of the element representation. More...
Static Protected Member Functions inherited from bridges::datastructure::Element< E >
static const string	getLinkRepresentation (const LinkVisualizer &lv, const string &src, const string &dest)
Protected Attributes inherited from bridges::datastructure::Element< E >
unordered_map< Element *, LinkVisualizer >	links

Constructor & Destructor Documentation

BTElement() [1/2]

template<typename E >

bridges::datastructure::BTElement< E >::BTElement ( BTElement< E > *  l, BTElement< E > *  r, const E &  e = E(), const string &  lab = string()  )

inline

Constructs a BTElement with the provided value, label, left and right BTElements.

The defaults will be used if not provided.

Parameters

l	The left TreeElement
r	The right TreeElement
e	The data to hold
lab	The label to show

BTElement() [2/2]

template<typename E >

bridges::datastructure::BTElement< E >::BTElement ( const E &  e = E(), const string &  lab = string()  )

inline

Constructs a BTElement with the provided value and label, setting the left and right BTElement to nullptr.

The defaults will be used if not provided.

Parameters

e	The data to hold
lab	The label to show

Member Function Documentation

getDStype()

template<typename E >

virtual const string bridges::datastructure::BTElement< E >::getDStype ( ) const

inlineoverridevirtual

Returns

the data structure type

Reimplemented from bridges::datastructure::TreeElement< E >.

getLeft() [1/2]

template<typename E >

virtual BTElement* bridges::datastructure::BTElement< E >::getLeft ( )

inlinevirtual

Returns

The left BTElement

getLeft() [2/2]

template<typename E >

virtual const BTElement* bridges::datastructure::BTElement< E >::getLeft ( ) const

inlinevirtual

Constant version

getRight() [1/2]

template<typename E >

virtual BTElement* bridges::datastructure::BTElement< E >::getRight ( )

inlinevirtual

Returns

The right BTElement

getRight() [2/2]

template<typename E >

virtual const BTElement* bridges::datastructure::BTElement< E >::getRight ( ) const

inlinevirtual

Constant version

setLeft()

template<typename E >

void bridges::datastructure::BTElement< E >::setLeft ( BTElement< E > *  l )

inline

Sets left to "l"

Parameters

l	The left BTElement

setRight()

template<typename E >

void bridges::datastructure::BTElement< E >::setRight ( BTElement< E > *  r )

inline

Sets right to "r"

Parameters

r	The right BTElement

---

The documentation for this class was generated from the following file:

• /home/erik/work/bridges/bridges-cxx/src/BTElement.h
