#include <Symbol.h>

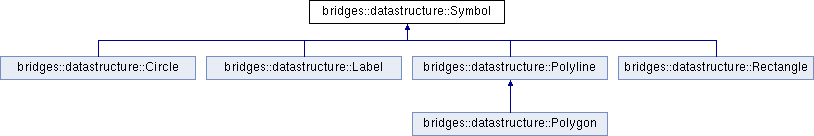

Inheritance diagram for bridges::datastructure::Symbol:

Detailed Description

This is an abstract class for deriving a number of Symbol shape objects, for use in a SymbolCollection. Symbols correspond to a simplified subset of SVG paths and shapes for custom visual representations in BRIDGES.

Currently shapes supported are rectangle, circle, polygon, label; each shape has a name, location (x, y) and appropriate geometric and non-geometric attributes

Author: David Burlinson, Kalpathi Subramanian

Date: 12/24/18, 7/12/19, 12/28/20

Public Member Functions
	Symbol ()
	default constructor More...

virtual const string	getSymbolRepresentation () const =0
	Virtual method to get the JSON representation of the symbol. More...

virtual vector< float >	getDimensions () const =0
	Virtual method to get the bounding box (dimensions) of the shape. More...

	Symbol (string symb)
	Create a symbol of type "symb". More...

int	getIdentifier ()
	return the symbol identifier. More...

void	setLabel (string lbl)
	Set the symbol label. More...

string	getLabel () const
	Get the symbol label. More...

void	setFillColor (Color c)
	Set the symbol fill color. More...

void	setFillColor (string c)
	This method sets the symbol fill color. More...

Color	getFillColor ()
	This method gets fill color. More...

void	setStrokeColor (Color c)

void	setStrokeColor (string c)
	This method sets the symbol stroke color. More...

Color	getStrokeColor ()
	This method gets stroke color. More...

void	setStrokeWidth (float strk_width)
	This method sets the symbol stroke width. More...

float	getStrokeWidth ()
	This method gets stroke width. More...

void	setOpacity (float op)
	This method sets the symbol opacity. More...

float	getOpacity ()
	This method gets symbol opacity. More...

void	setStrokeDash (int dash)
	This method sets the stroke dash level. More...

int	getStrokeDash ()
	This method gets stroke dash level. More...

void	setLocation (int x, int y)
	This method sets the symbol location. More...

void	setLocation (double x, double y)
	This method sets the symbol location. More...

void	setCenter (float x, float y)
	This method sets the symbol location. More...

void	setLocation (float x, float y)
	This method sets the ssymbol location. More...

const float *	getLocation () const
	This method gets the symbol location. More...

string	getName () const
	This method gets the name of the symbol. More...

Protected Member Functions
void	setShapeType (string s)
	Set the shape type. More...

string	getShapeType () const

void	translatePoint (float *pt, float tx, float ty)
	Translate a 2D point. More...

void	scalePoint (float *pt, float sx, float sy)
	Scale a 2D point. More...

void	rotatePoint (float *pt, float angle)
	Rotate a 2D point (about Z) More...

const string	getSymbolAttributeRepresentation () const
	Get the JSON of the symbol representation. More...

Constructor & Destructor Documentation

◆ Symbol() [1/2]

bridges::datastructure::Symbol::Symbol ( )

inline

default constructor

◆ Symbol() [2/2]

bridges::datastructure::Symbol::Symbol ( string symb )

inline

Create a symbol of type "symb".

Parameters

symb	symbol to create

Member Function Documentation

◆ getDimensions()

virtual vector<float> bridges::datastructure::Symbol::getDimensions ( ) const

pure virtual

Virtual method to get the bounding box (dimensions) of the shape.

Implemented in bridges::datastructure::Polyline, bridges::datastructure::Label, bridges::datastructure::Rectangle, and bridges::datastructure::Circle.

◆ getFillColor()

Color bridges::datastructure::Symbol::getFillColor ( )

inline

This method gets fill color.

Returns: fill color

◆ getIdentifier()

int bridges::datastructure::Symbol::getIdentifier ( )

inline

return the symbol identifier.

Maintains unique identifiers of symbols and returns the Symbol's unique identifier

Returns: the identifier

◆ getLabel()

string bridges::datastructure::Symbol::getLabel ( ) const

inline

Get the symbol label.

Returns: the label

◆ getLocation()

const float* bridges::datastructure::Symbol::getLocation ( ) const

inline

This method gets the symbol location.

Returns: location (x, y) of the symbol

◆ getName()

string bridges::datastructure::Symbol::getName ( ) const

inline

This method gets the name of the symbol.

Returns: name shape name

◆ getOpacity()

float bridges::datastructure::Symbol::getOpacity ( )

inline

This method gets symbol opacity.

Returns: symbol opacity

◆ getShapeType()

string bridges::datastructure::Symbol::getShapeType ( ) const

inlineprotected

Get the symbol label

Returns: the shape type

◆ getStrokeColor()

Color bridges::datastructure::Symbol::getStrokeColor ( )

inline

This method gets stroke color.

Returns: stroke color

◆ getStrokeDash()

int bridges::datastructure::Symbol::getStrokeDash ( )

inline

This method gets stroke dash level.

Returns: stroke dash level

◆ getStrokeWidth()

float bridges::datastructure::Symbol::getStrokeWidth ( )

inline

This method gets stroke width.

Returns: stroke width

◆ getSymbolAttributeRepresentation()

const string bridges::datastructure::Symbol::getSymbolAttributeRepresentation ( ) const

inlineprotected

Get the JSON of the symbol representation.

This method gets the JSON representation of all of the symbol attributes

Returns: JSON string of symbol attributes

◆ getSymbolRepresentation()

virtual const string bridges::datastructure::Symbol::getSymbolRepresentation ( ) const

pure virtual

Virtual method to get the JSON representation of the symbol.

Implemented in bridges::datastructure::Polyline, bridges::datastructure::Rectangle, bridges::datastructure::Label, and bridges::datastructure::Circle.

◆ rotatePoint()

void bridges::datastructure::Symbol::rotatePoint	(	float *	pt,
		float	angle
	)

inlineprotected

Rotate a 2D point (about Z)

Parameters

pt	2D point (x, y)
angle	rotation angle in degrees (positive is counter clockwise, negative is clockwise)

◆ scalePoint()

void bridges::datastructure::Symbol::scalePoint	(	float *	pt,
		float	sx,
		float	sy
	)

inlineprotected

Scale a 2D point.

Parameters

pt	2D point (x, y)
sx,sy	scale factors along each axis

◆ setCenter()

void bridges::datastructure::Symbol::setCenter	(	float	x,
		float	y
	)

inline

This method sets the symbol location.

Parameters

x	x coordinate
y	y coordinate

◆ setFillColor() [1/2]

void bridges::datastructure::Symbol::setFillColor ( Color c )

inline

Set the symbol fill color.

Parameters

c	the color to set

◆ setFillColor() [2/2]

void bridges::datastructure::Symbol::setFillColor ( string c )

inline

This method sets the symbol fill color.

Parameters

c	the named color to set

◆ setLabel()

void bridges::datastructure::Symbol::setLabel ( string lbl )

inline

Set the symbol label.

Parameters

lbl	the label to set

◆ setLocation() [1/3]

void bridges::datastructure::Symbol::setLocation	(	int	x,
		int	y
	)

inline

This method sets the symbol location.

Parameters

x	x coordinate
y	y coordinate

◆ setLocation() [2/3]

void bridges::datastructure::Symbol::setLocation	(	double	x,
		double	y
	)

inline

This method sets the symbol location.

Parameters

x	x coordinate
y	y coordinate

◆ setLocation() [3/3]

void bridges::datastructure::Symbol::setLocation	(	float	x,
		float	y
	)

inline

This method sets the ssymbol location.

Parameters

x	x coordinate
y	y coordinate

◆ setOpacity()

void bridges::datastructure::Symbol::setOpacity ( float op )

inline

This method sets the symbol opacity.

Parameters

op	the opacity to set

◆ setShapeType()

void bridges::datastructure::Symbol::setShapeType ( string s )

inlineprotected

Set the shape type.

Parameters

s	shape type to set

◆ setStrokeColor() [1/2]

void bridges::datastructure::Symbol::setStrokeColor ( Color c )

inline

This method sets the symbol stroke color

Parameters

c	the color to set

◆ setStrokeColor() [2/2]

void bridges::datastructure::Symbol::setStrokeColor ( string c )

inline

This method sets the symbol stroke color.

Parameters

c	the named color to set

◆ setStrokeDash()

void bridges::datastructure::Symbol::setStrokeDash ( int dash )

inline

This method sets the stroke dash level.

Parameters

dash	dash level

◆ setStrokeWidth()

void bridges::datastructure::Symbol::setStrokeWidth ( float strk_width )

inline

This method sets the symbol stroke width.

Parameters

strk_width the stroke width to set

◆ translatePoint()

void bridges::datastructure::Symbol::translatePoint	(	float *	pt,
		float	tx,
		float	ty
	)

inlineprotected

Translate a 2D point.

Parameters

pt	2D point (x, y)
tx,ty	translation vector

The documentation for this class was generated from the following file:

/home/erik/work/bridges/bridges-cxx/src/Symbol.h
