bridges.base.KdTreeElement< K, E > Class Template Reference

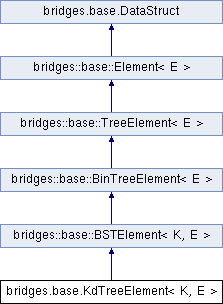

Inheritance diagram for bridges.base.KdTreeElement< K, E >:

Detailed Description

The This class can be used to create K-d Tree elements, derived from BSTElement. K-D trees can be thought of as the spatial equivalent binary search trees and operate on multiple dimensions (2D and 3D are most common). These trees serve as a representation of the underlying geometrically defined spaces. Specialized versions of these trees include quadtrees and octrees, which subdivide into equal sized quadrants octants at each level, respectively.

This class extends the BSTElement class by adding a dimension property. It also includes a thickness property for displaying the partitioning lines generated by the convex decomposition. This thickness get passed to some constructor KdTreeElement() and to setThickness(). It is purely a graphical attribute.

convenient to generate visual representation to allow for use in a binary search tree implementation.

See also

Example tutorial using AVLTreeElement at http://bridgesuncc.github.io/tutorials/KdTree.html

Parameters

K	that is the search key type - this is usually a number, integer or float
E	the application data type

Author

Kalpathi Subramanian

Date

12/26/18, 7/12/19

Public Member Functions
	KdTreeElement (K k, int dim, float th, KdTreeElement< K, E > l, KdTreeElement< K, E > r, E val, String lab)
	KdTreeElement ()
	KdTreeElement (E e, KdTreeElement< K, E > left, KdTreeElement< K, E > right)
	KdTreeElement (K key, E e, KdTreeElement< K, E > left, KdTreeElement< K, E > right)
	KdTreeElement (E e)
	KdTreeElement (K key, int dim)
String	getDataStructType ()
	KdTreeElement (K key, E e)
	KdTreeElement (String label, E e)
	KdTreeElement (String label, K key, E e)
	KdTreeElement (KdTreeElement< K, E > left, KdTreeElement< K, E > right)
int	getDimension ()
void	setDimension (int dim)
float	getThickness ()
void	setThickness (float th)
KdTreeElement< K, E >	getLeft ()
KdTreeElement< K, E >	getRight ()
String	getElementRepresentation ()
Public Member Functions inherited from bridges.base.BSTElement< K, E >
	BSTElement ()
	BSTElement (E e, BSTElement< K, E > left, BSTElement< K, E > right)
	BSTElement (K key, E e, BSTElement< K, E > left, BSTElement< K, E > right)
	BSTElement (E e)
String	getDataStructType ()
	BSTElement (K key, E e)
	BSTElement (String label, E e)
	BSTElement (String label, K key, E e)
	BSTElement (BSTElement< K, E > left, BSTElement< K, E > right)
K	getKey ()
void	setKey (K key)
BSTElement< K, E >	getLeft ()
BSTElement< K, E >	getRight ()
String	getElementRepresentation ()
Public Member Functions inherited from bridges.base.BinTreeElement< E >
	BinTreeElement ()
	BinTreeElement (E e)
	BinTreeElement (String label, E e)
	BinTreeElement (BinTreeElement< E > left, BinTreeElement< E > right)
	BinTreeElement (E e, BinTreeElement< E > left, BinTreeElement< E > right)
String	getDataStructType ()
BinTreeElement< E >	getLeft ()
void	setLeft (BinTreeElement< E > left)
BinTreeElement< E >	getRight ()
void	setRight (BinTreeElement< E > right)
Public Member Functions inherited from bridges.base.TreeElement< E >
	TreeElement ()
	TreeElement (E e)
	TreeElement (String label, E e)
	TreeElement (TreeElement< E > left, TreeElement< E > right)
	TreeElement (E e, TreeElement< E > left, TreeElement< E > right)
String	getDataStructType ()
void	addChild (TreeElement< E > child)
int	getNumberOfChildren ()
void	setChild (int index, TreeElement< E > child)
TreeElement< E >	getChild (int index)
String	getDataStructureRepresentation ()
Public Member Functions inherited from bridges.base.Element< E >
String	getDataStructType ()
	Get the Element type name. More...
	Element ()
	Element constructor. More...
	Element (E val)
	the constructor of Element More...
	Element (String label, E val)
	Constructor of Element. More...
	Element (Element< E > original)
	performing deep copy of an element when needed More...
String	getIdentifier ()
void	setSize (double sz)
void	setColor (Color col)
Color	getColor ()
void	setOpacity (float opacity)
double	getOpacity ()
void	setShape (String aShape)
ElementVisualizer	getVisualizer ()
void	setVisualizer (ElementVisualizer visualizer)
LinkVisualizer	getLinkVisualizer (Element< E > el)
	Returns the Element's link visualizer object. More...
String	getClassName ()
int	compareTo (Element< E > e1)
boolean	equals (Element< E > e1)
String	getElementRepresentation ()
String	getDataStructureRepresentation ()
String	getLinkRepresentation (LinkVisualizer lv, String src, String dest)
String	getLabel ()
void	setLabel (String label)
E	getValue ()
void	setValue (E value)
double	getSize ()
void	setColor (String col)
	Change the element color. More...
String	getShape ()
void	setLocation (double locX, double locY)
	Set the location attributes of an element. More...
double	getLocationX ()
double	getLocationY ()
String	toString ()
Public Member Functions inherited from bridges.base.DataStruct
abstract String	getDataStructType ()
abstract String	getDataStructureRepresentation ()

Additional Inherited Members
Protected Member Functions inherited from bridges.base.Element< E >
void	setLinkVisualizer (Element< E > el)
	Sets the link from this element to a new incoming element. More...
void	removeLinkVisualizer (Element< E > el)
	Removes the link from this element to a new incoming element. More...
void	validateVal (E value)
Protected Attributes inherited from bridges.base.DataStruct
String	QUOTE = "\""

Constructor & Destructor Documentation

KdTreeElement() [1/10]

bridges.base.KdTreeElement< K, E >.KdTreeElement	(	K	k,
		int	dim,
		float	th,
		KdTreeElement< K, E >	l,
		KdTreeElement< K, E >	r,
		E	val,
		String	lab
	)

Constructs a KdTreeElement with the provided value, label, key, left and right KdTree elements. The defaults will be used if not provided.

Parameters

k	The key for ordering
dim	number of dimensions
th	thickness (used in rendering)
l	The left KdTree Element
r	The right KdTree Element
val	The data to hold
lab	The label to show

KdTreeElement() [2/10]

bridges.base.KdTreeElement< K, E >.KdTreeElement

(

)

Construct an empty KdTreeElement with no key assigned and left and right pointers set to null.

KdTreeElement() [3/10]

bridges.base.KdTreeElement< K, E >.KdTreeElement	(	E	e,
		KdTreeElement< K, E >	left,
		KdTreeElement< K, E >	right
	)

Construct a KdTreeElement holding an object "e" with a left pointer assigned to "left" and a right pointer assigned to "right".

Parameters

e	the object that KdTreeElement is holding
left	the KdTreeElement that should be assigned to the left pointer
right	the KdTreeElement taht should be assigned to the right pointer

KdTreeElement() [4/10]

bridges.base.KdTreeElement< K, E >.KdTreeElement	(	K	key,
		E	e,
		KdTreeElement< K, E >	left,
		KdTreeElement< K, E >	right
	)

Construct a KdTreeElement with a key "key", holding an object "e" with a left pointer assigned to "left" and a right pointer assigned to "right".

Parameters

key	the key to be used in a binary search tree implementation
e	the object this KdTreeElement is holding
left	the KdTreeElement that should be assigned to the left pointer
right	the KdTreeElement that should be assigned to the right pointer

KdTreeElement() [5/10]

bridges.base.KdTreeElement< K, E >.KdTreeElement

(

E

e

)

Construct a KdTreeElement holding the object "e", with no key assigned and left and right pointers set to null.

Parameters

e	the object this KdTreeElement is holding

KdTreeElement() [6/10]

bridges.base.KdTreeElement< K, E >.KdTreeElement	(	K	key,
		int	dim
	)

Construct a KdTreeElement given the key and dimension

Parameters

key	the key to be used in a binary search tree implementation
dim	the dimension of partitioning

KdTreeElement() [7/10]

bridges.base.KdTreeElement< K, E >.KdTreeElement	(	K	key,
		E	e
	)

Construct a KdTreeElement holding the object "e", with key "key" assigned and left and right pointers set to null.

Parameters

key	the key to be used in a binary search tree implementation
e	the object this KdTreeElement is holding

KdTreeElement() [8/10]

bridges.base.KdTreeElement< K, E >.KdTreeElement	(	String	label,
		E	e
	)

Construct a KdTreeElement holding the object "e", with label set to "label", with no key assigned, and left and right pointers set to null.

Parameters

label	the label of KdTreeElement that shows up on the Bridges visualization
e	the object this KdTreeElement is holding

KdTreeElement() [9/10]

bridges.base.KdTreeElement< K, E >.KdTreeElement	(	String	label,
		K	key,
		E	e
	)

Construct a KdTreeElement holding the object "e", with label set to "label", with "key" assigned to key, and left and right pointers set to null.

Parameters

label	the label of KdTreeElement that shows up on the Bridges visualization
key	the key to be used in a binary search tree implementation
e	the object this KdTreeElement is holding

KdTreeElement() [10/10]

bridges.base.KdTreeElement< K, E >.KdTreeElement	(	KdTreeElement< K, E >	left,
		KdTreeElement< K, E >	right
	)

Construct an empty KdTreeElement, with no key assigned, and left and right pointers set to null.

Parameters

left	the KdTreeElement that should be assigned to the left pointer
right	the KdTreeElement that should be assigned to the right pointer

Member Function Documentation

getDataStructType()

String bridges.base.KdTreeElement< K, E >.getDataStructType

(

)

This method gets the data structure type

Returns

The date structure type as a string

getDimension()

int bridges.base.KdTreeElement< K, E >.getDimension

(

)

Return the partitioning dimension

Returns

the partitioning dimension of this KdTreeElement

getElementRepresentation()

String bridges.base.KdTreeElement< K, E >.getElementRepresentation

(

)

Augment the element with the "height" and "balance factor" fields.

Returns

the augmented JSON string

getLeft()

KdTreeElement<K, E> bridges.base.KdTreeElement< K, E >.getLeft

(

)

Return the left child

Returns

the left child of this KdTreeElement

getRight()

KdTreeElement<K, E> bridges.base.KdTreeElement< K, E >.getRight

(

)

Return the right child

Returns

the right child of this KdTreeElement

getThickness()

float bridges.base.KdTreeElement< K, E >.getThickness

(

)

Return the thickness of the KdtreeElement; thickness is used in the visualization to draw the partitioning lines

Returns

the thickness of this KdTreeElement

setDimension()

void bridges.base.KdTreeElement< K, E >.setDimension

(

int

dim

)

Set the dimension of the KdTreElement to key

Parameters

dim	the dimension to set

setThickness()

void bridges.base.KdTreeElement< K, E >.setThickness

(

float

th

)

Set the thickness of the KdTreeElement

Parameters

th	thickness of the partitioner to set thickness is used in the visualization to draw the partitioning lines

---

The documentation for this class was generated from the following file:

• /home/erik/work/bridges/bridges-java/src/main/java/bridges/base/KdTreeElement.java
