bridges.base.CircDLelement< E > Class Template Reference

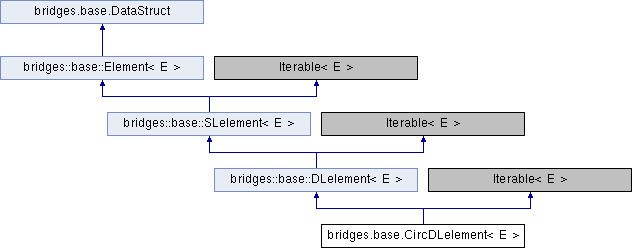

Inheritance diagram for bridges.base.CircDLelement< E >:

Classes
class	CircDLelementIterator
class	CircDLelementReverseIterator

Public Member Functions
	CircDLelement ()
	CircDLelement (String label, E e)
	CircDLelement (CircDLelement< E > next, CircDLelement< E > prev)
	CircDLelement (E e, CircDLelement< E > next, CircDLelement< E > prev)
String	getDataStructType ()
CircDLelement< E >	getNext ()
CircDLelement< E >	getPrev ()
Iterator< E >	iterator ()
Iterator< E >	reverse_iterator ()
Public Member Functions inherited from bridges.base.DLelement< E >
	DLelement ()
	DLelement (String label, E e)
	DLelement (DLelement< E > next, DLelement< E > prev)
	DLelement (E e, DLelement< E > next, DLelement< E > prev)
String	getDataStructType ()
DLelement< E >	getNext ()
void	setNext (DLelement< E > nxt)
DLelement< E >	getPrev ()
void	setPrev (DLelement< E > prv)
String	getDataStructureRepresentation ()
Iterator< E >	reverse_iterator ()
Public Member Functions inherited from bridges.base.SLelement< E >
	SLelement ()
	SLelement (String label, E e)
	SLelement (E e, SLelement< E > next)
	SLelement (E e)
	SLelement (SLelement< E > next)
String	getDataStructType ()
SLelement< E >	getNext ()
void	setNext (SLelement< E > next)
String	toString ()
String	getDataStructureRepresentation ()
Iterator< E >	iterator ()
Public Member Functions inherited from bridges.base.Element< E >
String	getDataStructType ()
	Get the Element type name. More...
	Element ()
	Element constructor. More...
	Element (E val)
	the constructor of Element More...
	Element (String label, E val)
	Constructor of Element. More...
	Element (Element< E > original)
	performing deep copy of an element when needed More...
String	getIdentifier ()
void	setSize (double sz)
void	setColor (Color col)
Color	getColor ()
void	setOpacity (float opacity)
double	getOpacity ()
void	setShape (String aShape)
ElementVisualizer	getVisualizer ()
void	setVisualizer (ElementVisualizer visualizer)
LinkVisualizer	getLinkVisualizer (Element< E > el)
	Returns the Element's link visualizer object. More...
String	getClassName ()
int	compareTo (Element< E > e1)
boolean	equals (Element< E > e1)
String	getElementRepresentation ()
String	getDataStructureRepresentation ()
String	getLinkRepresentation (LinkVisualizer lv, String src, String dest)
String	getLabel ()
void	setLabel (String label)
E	getValue ()
void	setValue (E value)
double	getSize ()
void	setColor (String col)
	Change the element color. More...
String	getShape ()
void	setLocation (double locX, double locY)
	Set the location attributes of an element. More...
double	getLocationX ()
double	getLocationY ()
String	toString ()
Public Member Functions inherited from bridges.base.DataStruct
abstract String	getDataStructType ()
abstract String	getDataStructureRepresentation ()

Additional Inherited Members
Protected Member Functions inherited from bridges.base.SLelement< E >
void	getListElements (Vector< Element< E >> nodes)
Protected Member Functions inherited from bridges.base.Element< E >
void	setLinkVisualizer (Element< E > el)
	Sets the link from this element to a new incoming element. More...
void	removeLinkVisualizer (Element< E > el)
	Removes the link from this element to a new incoming element. More...
void	validateVal (E value)
Protected Attributes inherited from bridges.base.DLelement< E >
DLelement< E >	prev
Protected Attributes inherited from bridges.base.SLelement< E >
SLelement< E >	next = null
Protected Attributes inherited from bridges.base.DataStruct
String	QUOTE = "\""

Constructor & Destructor Documentation

CircDLelement() [1/4]

bridges.base.CircDLelement< E >.CircDLelement

(

)

Constructs an empty CircDLelement with next and prev pointers set to itself

CircDLelement() [2/4]

bridges.base.CircDLelement< E >.CircDLelement	(	String	label,
		E	e
	)

Constructs a CircDLelement labeled "label", holding an object "e", with next and prev pointers set to itself

Parameters

label	the label for this CircDLelement that shows up on the Bridges visualization
e	the genereic object that this CircDLelement is holding

CircDLelement() [3/4]

bridges.base.CircDLelement< E >.CircDLelement	(	CircDLelement< E >	next,
		CircDLelement< E >	prev
	)

Constructs an empty DLelement with the next pointer set to the CircDLelement "next" and the prev pointer set to CircDLelement "prev".

Parameters

next	the DLelement that should be assigned to the next pointer
prev	the DLelement that should be assigned to the prev pointer

CircDLelement() [4/4]

bridges.base.CircDLelement< E >.CircDLelement	(	E	e,
		CircDLelement< E >	next,
		CircDLelement< E >	prev
	)

Constructs a DLelement holding an object "e", with the next pointer set to the DLelement "next" and the prev pointer set to DLelement "prev".

Parameters

e	the generic object that this CircDLelement is holding
next	the CircDLelement that should be assigned to the next pointer
prev	the CircDLelement that should be assigned to the prev pointer

Member Function Documentation

getDataStructType()

String bridges.base.CircDLelement< E >.getDataStructType

(

)

This method gets the name of the data structure type

Returns

The date structure type as a string

getNext()

CircDLelement<E> bridges.base.CircDLelement< E >.getNext

(

)

This method returns the pointer to the next DLelement

Returns

the DLelement assigned to the next pointer

getPrev()

CircDLelement<E> bridges.base.CircDLelement< E >.getPrev

(

)

This method returns the pointer to the previous DLelement

Returns

the DLelement assigned to the prev pointer

iterator()

Iterator<E> bridges.base.CircDLelement< E >.iterator

(

)

Return an iterator over the elements in the array. This is generally not called directly, but is called by Java when used in a "simple" for loops

reverse_iterator()

Iterator<E> bridges.base.CircDLelement< E >.reverse_iterator

(

)

Return an iterator over the elements in the array. This is generally not called directly, but is called by Java when used in a "simple" for loops

---

The documentation for this class was generated from the following file:

• /home/erik/work/bridges/bridges-java/src/main/java/bridges/base/CircDLelement.java
