bridges.base.CircSLelement< E > Class Template Reference

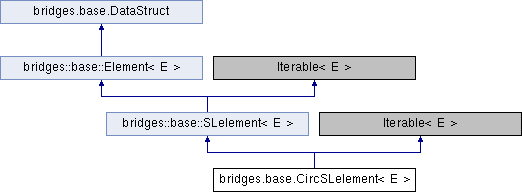

Inheritance diagram for bridges.base.CircSLelement< E >:

Classes
class	CircSLelementIterator

Public Member Functions
	CircSLelement ()
	CircSLelement (String label, E e)
	CircSLelement (E e, CircSLelement< E > next)
	CircSLelement (CircSLelement< E > next)
String	getDataStructType ()
CircSLelement< E >	getNext ()
Iterator< E >	iterator ()
String	toString ()
Public Member Functions inherited from bridges.base.SLelement< E >
	SLelement ()
	SLelement (String label, E e)
	SLelement (E e, SLelement< E > next)
	SLelement (E e)
	SLelement (SLelement< E > next)
String	getDataStructType ()
SLelement< E >	getNext ()
void	setNext (SLelement< E > next)
String	toString ()
String	getDataStructureRepresentation ()
Iterator< E >	iterator ()
Public Member Functions inherited from bridges.base.Element< E >
String	getDataStructType ()
	Get the Element type name. More...
	Element ()
	Element constructor. More...
	Element (E val)
	the constructor of Element More...
	Element (String label, E val)
	Constructor of Element. More...
	Element (Element< E > original)
	performing deep copy of an element when needed More...
String	getIdentifier ()
void	setSize (double sz)
void	setColor (Color col)
Color	getColor ()
void	setOpacity (float opacity)
double	getOpacity ()
void	setShape (String aShape)
ElementVisualizer	getVisualizer ()
void	setVisualizer (ElementVisualizer visualizer)
LinkVisualizer	getLinkVisualizer (Element< E > el)
	Returns the Element's link visualizer object. More...
String	getClassName ()
int	compareTo (Element< E > e1)
boolean	equals (Element< E > e1)
String	getElementRepresentation ()
String	getDataStructureRepresentation ()
String	getLinkRepresentation (LinkVisualizer lv, String src, String dest)
String	getLabel ()
void	setLabel (String label)
E	getValue ()
void	setValue (E value)
double	getSize ()
void	setColor (String col)
	Change the element color. More...
String	getShape ()
void	setLocation (double locX, double locY)
	Set the location attributes of an element. More...
double	getLocationX ()
double	getLocationY ()
String	toString ()
Public Member Functions inherited from bridges.base.DataStruct
abstract String	getDataStructType ()
abstract String	getDataStructureRepresentation ()

Additional Inherited Members
Protected Member Functions inherited from bridges.base.SLelement< E >
void	getListElements (Vector< Element< E >> nodes)
Protected Member Functions inherited from bridges.base.Element< E >
void	setLinkVisualizer (Element< E > el)
	Sets the link from this element to a new incoming element. More...
void	removeLinkVisualizer (Element< E > el)
	Removes the link from this element to a new incoming element. More...
void	validateVal (E value)
Protected Attributes inherited from bridges.base.SLelement< E >
SLelement< E >	next = null
Protected Attributes inherited from bridges.base.DataStruct
String	QUOTE = "\""

Constructor & Destructor Documentation

CircSLelement() [1/4]

bridges.base.CircSLelement< E >.CircSLelement

(

)

This constructor creates an CircSLelement object and sets its next pointer to itself

CircSLelement() [2/4]

bridges.base.CircSLelement< E >.CircSLelement	(	String	label,
		E	e
	)

This constructor creates an CircSLelement object of value "e" and label "label" and sets the next pointer to null

Parameters

label	the label of CircSLelement that shows up on the Bridges visualization
e	the generic object that this CircSLelement will hold

CircSLelement() [3/4]

bridges.base.CircSLelement< E >.CircSLelement	(	E	e,
		CircSLelement< E >	next
	)

Creates a new element with value "e" and sets the next pointer to the CircSLelement referenced by the "next" argument

Parameters

e	the generic object that this CircSLelement will hold
next	the CircSLelement that should be assigned to the next pointer

CircSLelement() [4/4]

bridges.base.CircSLelement< E >.CircSLelement

(

CircSLelement< E >

next

)

Creates a new element and sets the next pointer to the CircSLelement "next"

Parameters

next	the CircSLelement that should be assigned to the next pointer

Member Function Documentation

getDataStructType()

String bridges.base.CircSLelement< E >.getDataStructType

(

)

This method gets the data structure type

Returns

The date structure type as a string

getNext()

CircSLelement<E> bridges.base.CircSLelement< E >.getNext

(

)

Retrieves the next CircSLelement

Returns

CircSLelement<E> assigned to next

iterator()

Iterator<E> bridges.base.CircSLelement< E >.iterator

(

)

Return an iterator over the elements in the array. This is generally not called directly, but is called by Java when used in a "simple" for loops

toString()

String bridges.base.CircSLelement< E >.toString

(

)

---

The documentation for this class was generated from the following file:

• /home/erik/work/bridges/bridges-java/src/main/java/bridges/base/CircSLelement.java
