bridges.element.Element Class Reference

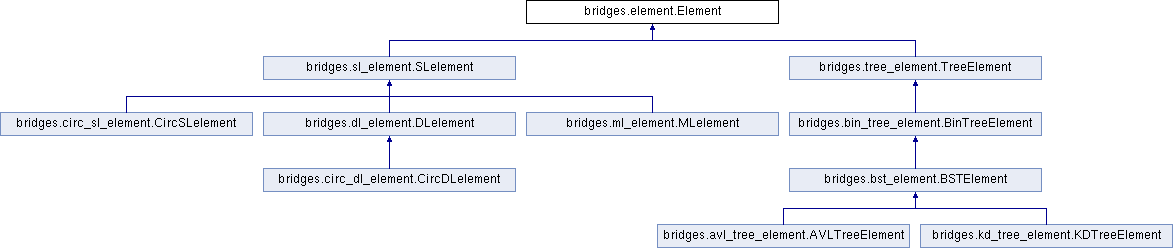

Inheritance diagram for bridges.element.Element:

Detailed Description

This is the main superclass in BRIDGES for deriving a number of elements used in building data structures, viz., arrays, lists, trees and graphs.

SLelement, DLelement, CircSLelement, CircDLelement, MLelement, TreeElement, BinTreeElement, BSTElement, AVLTreeElement and KDTreeElement are all subclasses (see class hierarchy above). Element contains two visualizer objects (ElementVisualizer, LinkVisualizer) for specifying visual attributes for nodes and links respectively. It also contains a label that that can be displayed in BRIDGES visualizations.

All the tutorials under

http://bridgesuncc.github.io/tutorials/Overview.html

illustrate examples of using different types of Element objects and how to manipulate their visual attributes.

Author

Matthew Mcquaigue, Kalpathi Subramanian

2017, 2018, 6/24/19

Public Member Functions
def	get_data_structure_type (self)
	Get the data structure representation. More...
def	__init__ (self, kwargs)
def	value (self)
	Getter for the value this element is holding. More...
def	value (self, val)
	Setter for the value of an element. More...
def	identifier (self)
	Getter for the element identifier. More...
def	identifier
	Setter for the element identifier. More...
def	visualizer (self)
	Getter for the element visualizer. More...
def	visualizer
	Setter function for this element visualizer. More...
def	get_link_visualizer (self, el)
def	set_link_visualizer (self, el)
	Setter for the link visualizer of this element. More...
def	remove_link_visualizer (self, el)
	Deleter function for the lik visualizer of this element. More...
def	label (self)
	Getter for the element's label. More...
def	label (self, label)
	Setter for the element's label. More...
def	size (self)
	Getter for the element's size. More...
def	size (self, sz)
	Setter for the element's size. More...
def	color (self)
	Getter for the element's color. More...
def	color (self, col)
	Setter for the element's size. More...
def	opacity (self)
	Getter for the element's opacity. More...
def	opacity (self, op)
	Setter for the element's opacity. More...
def	shape (self)
	Getter for the element's shape type. More...
def	shape (self, shp)
	Setter for the element's shape. More...
def	id (self)
def	set_location (self, locX, locY)
	Setter for the element's location. More...
def	get_locationX (self)
	Getter for the element's location in X. More...
def	get_locationY (self)
	Getter for the element's location in Y. More...
def	get_element_representation (self)
	Getter for the element's JSON representation (for internal use) More...
def	get_link_representation (self, lv, src, dest)
	Getter for the JSON representation of the element's link (for internal use) More...

Public Attributes
	color
	opacity

Static Public Attributes
int	ids = 0

Constructor & Destructor Documentation

__init__()

def bridges.element.Element.__init__	(		self,
			kwargs,
			None
	)

Member Function Documentation

color() [1/2]

def bridges.element.Element.color

(

self

)

Getter for the element's color.

Returns

Color element's color

color() [2/2]

def bridges.element.Element.color	(		self,
			col
	)

Setter for the element's size.

Parameters

col	the element's color

Returns

None

get_data_structure_type()

def bridges.element.Element.get_data_structure_type	(		self,
			str
	)

Get the data structure representation.

Returns

str representing the data structure type

get_element_representation()

def bridges.element.Element.get_element_representation

(

self

)

Getter for the element's JSON representation (for internal use)

Returns

str JSON of element

get_link_representation()

def bridges.element.Element.get_link_representation	(		self,
			lv,
			src,
			dest
	)

Getter for the JSON representation of the element's link (for internal use)

Parameters

lv	link visualizer
src	source vertex of link
dest	destination vertex of link

Returns

str JSON of element's link from src to dest

get_link_visualizer()

def bridges.element.Element.get_link_visualizer	(		self,
			el,
			LinkVisualizer
	)

get_locationX()

def bridges.element.Element.get_locationX

(

self

)

Getter for the element's location in X.

Returns

float X coordinate of element's location

get_locationY()

def bridges.element.Element.get_locationY

(

self

)

Getter for the element's location in Y.

Returns

float Y coordinate of element's location

id()

def bridges.element.Element.id	(		self,
			int
	)

identifier() [1/2]

def bridges.element.Element.identifier	(		self,
			str
	)

Getter for the element identifier.

Return

str element identifier (for internal use)

identifier() [2/2]

def bridges.element.Element.identifier	(		self,
			id
	)

Setter for the element identifier.

Parameters

int	the identifier (for internal use)

Returns

None

label() [1/2]

def bridges.element.Element.label

(

self

)

Getter for the element's label.

Returns

str the element's label

label() [2/2]

def bridges.element.Element.label	(		self,
			label
	)

Setter for the element's label.

Parameters

str	the element's label

Returns

None

opacity() [1/2]

def bridges.element.Element.opacity

(

self

)

Getter for the element's opacity.

Returns

float element size (0-1.0)

opacity() [2/2]

def bridges.element.Element.opacity	(		self,
			op
	)

Setter for the element's opacity.

Parameters

op	the element's size (0-1.0)

Returns

None

remove_link_visualizer()

def bridges.element.Element.remove_link_visualizer	(		self,
			el,
			None
	)

Deleter function for the lik visualizer of this element.

(Element) el: the terminating element of the link; the link visualizer for this link will be deleted

Returns

None

set_link_visualizer()

def bridges.element.Element.set_link_visualizer	(		self,
			el,
			None
	)

Setter for the link visualizer of this element.

(Element) el: the terminating element of this link; creates a new link visualizer for this link

Returns

None

set_location()

def bridges.element.Element.set_location	(		self,
			locX,
			locY
	)

Setter for the element's location.

Parameters

locX	the element's location in X
locY	the element's location in Y

Returns

None

shape() [1/2]

def bridges.element.Element.shape

(

self

)

Getter for the element's shape type.

Returns

element shape

shape() [2/2]

def bridges.element.Element.shape	(		self,
			shp
	)

Setter for the element's shape.

Parameters

shp	the element's size (0-1.0)

Returns

None

size() [1/2]

def bridges.element.Element.size

(

self

)

Getter for the element's size.

Returns

int element size (0-50)

size() [2/2]

def bridges.element.Element.size	(		self,
			sz
	)

Setter for the element's size.

Parameters

sz	the element's size (0-50)

Returns

None

value() [1/2]

def bridges.element.Element.value	(		self,
			object
	)

Getter for the value this element is holding.

Returns

generic object (application specific)

value() [2/2]

def bridges.element.Element.value	(		self,
			val,
			None
	)

Setter for the value of an element.

Parameters

val	the value (generic, application specific object) this element will hold

Returns

None

visualizer() [1/2]

def bridges.element.Element.visualizer	(		self,
			ElementVisualizer
	)

Getter for the element visualizer.

Returns

ElementVisualizer

visualizer() [2/2]

def bridges.element.Element.visualizer	(		self,
			vis
	)

Setter function for this element visualizer.

Parameters

vis	the element visualizer

Returns

None

Member Data Documentation

color

bridges.element.Element.color

ids

int bridges.element.Element.ids = 0

static

opacity

bridges.element.Element.opacity

---

The documentation for this class was generated from the following file:

• /home/erik/work/bridges/bridges-python/bridges/element.py
