bridges.symbol.Symbol Class Reference

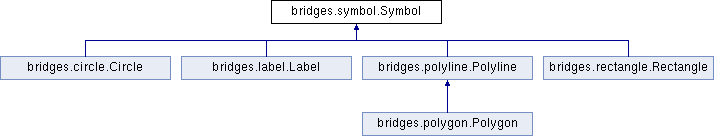

Inheritance diagram for bridges.symbol.Symbol:

Detailed Description

This is the base class for constructing simple shapes in BRIDGES.

This is an abstract class for deriving a number of Symbol shape objects, for use in a SymbolCollection. Symbols correspond to a simplified subset of SVG paths and shapes for custom visual representations in BRIDGES.

Users will typically one of the subclasses of this object for creating shapes

Currently shapes supported are rectangle, circle, polygon, polyline and label; each shape has a name, location (x, y) and appropriate geometric and non-geometric attributes

Author

David Burlinson, Kalpathi Subramanian

Date

12/24/18, 7/12/19

Public Member Functions
def	__init__ (self)
	Constructor for a Symbol. More...
def	label (self)
	Getter for symbol label. More...
def	label
	Setter for symbol label. More...
def	identifier (self)
	Getter for the symbols identifier. More...
def	fill_color (self)
	Getter for the fill color. More...
def	fill_color (self, args, kwargs)
	Setter for the fill color. More...
def	stroke_color (self)
	Getter for the stroke color. More...
def	stroke_color (self, args, kwargs)
	Setter for the stroke color. More...
def	stroke_width (self)
	Getter for the stroke width. More...
def	stroke_width
	Setter for the stroke width. More...
def	opacity (self)
	Getter for opacity. More...
def	opacity
	Setter for opacity. More...
def	stroke_dash (self)
	Getter for stroke_dash. More...
def	stroke_dash
	Setter for stroke_dash. More...
def	shape_type (self)
	Get the shape type (string) More...
def	shape_type (self, shape)
	Set the shape type (string) More...
def	set_location
	Setter for the location of the center of the symbol. More...
def	get_location (self)
	Getter for the location of a symbol. More...
def	get_dimensions (self)
	Getter for the dimensions. More...
def	translate_point (self, pt, tx, ty)
	Translate a point by tx, ty along X and Y respectively. More...
def	scale_point (self, pt, sx, sy)
	Scale a point by sx, sy along X and Y respectively. More...
def	rotate_point (self, pt, angle)
	Rotate a point by 'angle' (2D rotation) More...
def	get_json_representation (self)
	Get the json representation of the Symbol class. More...

Constructor & Destructor Documentation

__init__()

def bridges.symbol.Symbol.__init__

(

self

)

Constructor for a Symbol.

Member Function Documentation

fill_color() [1/2]

def bridges.symbol.Symbol.fill_color	(		self,
			Color
	)

Getter for the fill color.

Returns

Color the current fill color of this symbol

fill_color() [2/2]

def bridges.symbol.Symbol.fill_color	(		self,
			args,
			kwargs,
			None
	)

Setter for the fill color.

Parameters

color

the color to set for the fill

Returns

None

get_dimensions()

def bridges.symbol.Symbol.get_dimensions	(		self,
			list
	)

Getter for the dimensions.

Returns

list the bounding box of this shape (xmin, xmax, ymin, ymax)

get_json_representation()

def bridges.symbol.Symbol.get_json_representation	(		self,
			dict
	)

Get the json representation of the Symbol class.

Returns

dict the JSON representation

get_location()

def bridges.symbol.Symbol.get_location	(		self,
			list
	)

Getter for the location of a symbol.

Returns

list the x and y coordinates of the shape's current location

identifier()

def bridges.symbol.Symbol.identifier	(		self,
			str
	)

Getter for the symbols identifier.

Returns

str

label() [1/2]

def bridges.symbol.Symbol.label	(		self,
			str
	)

Getter for symbol label.

Returns

str the label of this shape

label() [2/2]

def bridges.symbol.Symbol.label	(		self,
			label
	)

Setter for symbol label.

Parameters

label

to be set

Returns

str

opacity() [1/2]

def bridges.symbol.Symbol.opacity	(		self,
			float
	)

Getter for opacity.

Returns

float opacity of the shape

opacity() [2/2]

def bridges.symbol.Symbol.opacity	(		self,
			o
	)

Setter for opacity.

Parameters

o	the opacity value to set (must be in 0-1.0 range)

Returns

None

Raises value error

rotate_point()

def bridges.symbol.Symbol.rotate_point	(		self,
			pt,
			angle
	)

Rotate a point by 'angle' (2D rotation)

Parameters

pt	2D point to be rotated
angle	rotation angle

scale_point()

def bridges.symbol.Symbol.scale_point	(		self,
			pt,
			sx,
			sy
	)

Scale a point by sx, sy along X and Y respectively.

Parameters

pt	2D point to be scaled
sx	scale factor in X
sy	scale factor in Y

set_location()

def bridges.symbol.Symbol.set_location	(		self,
			x
	)

Setter for the location of the center of the symbol.

Parameters

x	x location
y	y location

Returns

None

       Value error

shape_type() [1/2]

def bridges.symbol.Symbol.shape_type

(

self

)

Get the shape type (string)

Returns

shape name (string)

shape_type() [2/2]

def bridges.symbol.Symbol.shape_type	(		self,
			shape
	)

Set the shape type (string)

Parameters

shape

shape name to set

stroke_color() [1/2]

def bridges.symbol.Symbol.stroke_color	(		self,
			Color
	)

Getter for the stroke color.

Returns

the stroke (boundary) color of the shape

stroke_color() [2/2]

def bridges.symbol.Symbol.stroke_color	(		self,
			args,
			kwargs,
			None
	)

Setter for the stroke color.

Parameters

color

the stroke (boundary) color to set

Returns

None

stroke_dash() [1/2]

def bridges.symbol.Symbol.stroke_dash	(		self,
			float
	)

Getter for stroke_dash.

Returns

float the stroke texture

stroke_dash() [2/2]

def bridges.symbol.Symbol.stroke_dash	(		self,
			dash
	)

Setter for stroke_dash.

Parameters

dash	the stroke_dash value to set (0-10 range)

Returns

None

Raises value error

stroke_width() [1/2]

def bridges.symbol.Symbol.stroke_width	(		self,
			float
	)

Getter for the stroke width.

Returns

float the stroke width of the shape

stroke_width() [2/2]

def bridges.symbol.Symbol.stroke_width	(		self,
			width
	)

Setter for the stroke width.

Parameters

width

the stroke width to set

Returns

None

       value error

translate_point()

def bridges.symbol.Symbol.translate_point	(		self,
			pt,
			tx,
			ty
	)

Translate a point by tx, ty along X and Y respectively.

Parameters

pt	2D point to be translated
tx	translation factor in X
ty	translation factor in Y

---

The documentation for this class was generated from the following file:

• /home/erik/work/bridges/bridges-python/bridges/symbol.py
