#include <CircSLelement.h>

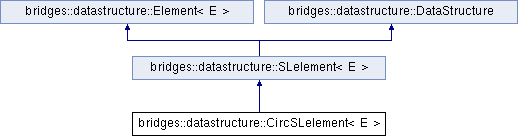

Inheritance diagram for bridges::datastructure::CircSLelement< E >:

Detailed Description

template<typename E>
class bridges::datastructure::CircSLelement< E >

This class can be used to instantiate Singly Linked Circular List Elements.

This class can be used to instantiate Circular (Singly) Linked List Elements, derived from Singly Linked Element. The main difference from the SLelement is that they create circularly linked elements and their traversals are slightly different.

Elements have labels (string) that are displayed on the visualization Elements take an generic object as a user defined parameter, any native type or object.

Element contains a visualizer object for setting visual attributes (color, shape, opacity, size), necessary for displaying them in a web browser

See also: There is a tutorial about Circular Singly Linked Lists : http://bridgesuncc.github.io/tutorials/CircularSinglyLinkedList.html

Author: Kalpathi Subramanian

Date: 10/5/2016, 7/12/19

Parameters

E	User type stored in the list

Classes
class	CircSLelement_constlisthelper
	these are helper classes for CircSLelement for easy iteration in a range for loop. It is not meant to be created by the bridges user. But it may be returned by Bridges to provide an STL compliant list API. More...

class	CircSLelement_listhelper

Public Member Functions
	CircSLelement ()

	CircSLelement (E val=E(), string label=string())

	CircSLelement (E e=E(), CircSLelement *next=nullptr)

	CircSLelement (CircSLelement *next)

virtual const string	getDStype () const override

virtual CircSLelement< E > *	getNext () override

void	setNext (CircSLelement< E > *next)

Public Member Functions inherited from bridges::datastructure::SLelement< E >
	SLelement (SLelement *next, const E &val=E(), const string &lab=string())

	SLelement (const E &val=E(), const string &lab=string())

virtual const SLelement *	getNext () const

void	setNext (SLelement *n)

Public Member Functions inherited from bridges::datastructure::Element< E >
	Element (const E &val=E(), const string &lab=string())

	Element (const Element &e)

Element &	operator= (const Element &e)

E &	operator= (E const &e)

virtual	~Element ()

ElementVisualizer *	getVisualizer ()

const ElementVisualizer *	getVisualizer () const

LinkVisualizer *	getLinkVisualizer (const Element *el)

LinkVisualizer *	getLinkVisualizer (const Element *el) const

string const &	getLabel () const

void	setLabel (const string &lab)

E const &	getValue () const

E &	getValue ()

void	setValue (const E &val)

void	setSize (const double &sz)
	Sets size of the element. More...

double	getSize () const

void	setColor (const Color &col)
	Set the color of the Element. More...

void	setColor (const string col)
	Set the color by name. More...

Color	getColor () const
	Get the current color of the element. More...

void	setOpacity (double opacity)

double	getOpacity ()

void	setShape (const Shape &shp)
	Set the shape of the element. More...

Shape	getShape () const
	Returns the shape of the element. More...

void	setLocation (const double &locX, const double &locY)

double	getLocationX () const

double	getLocationY () const

Public Member Functions inherited from bridges::datastructure::DataStructure
virtual	~DataStructure ()=default

Additional Inherited Members
Protected Member Functions inherited from bridges::datastructure::SLelement< E >
virtual const pair< string, string >	generateJSON (vector< const SLelement< E > *> nodes) const

virtual void	getListElements (vector< const SLelement< E > *> &nodes) const

Protected Member Functions inherited from bridges::datastructure::Element< E >
virtual const string	getElementRepresentation () const

Static Protected Member Functions inherited from bridges::datastructure::Element< E >
static const string	getLinkRepresentation (const LinkVisualizer &lv, const string &src, const string &dest)

Protected Attributes inherited from bridges::datastructure::SLelement< E >
SLelement *	next = nullptr

Protected Attributes inherited from bridges::datastructure::Element< E >
unordered_map< Element *, LinkVisualizer >	links

Constructor & Destructor Documentation

◆ CircSLelement() [1/4]

template<typename E>

bridges::datastructure::CircSLelement< E >::CircSLelement ( )

inline

This constructor creates an CircSLelement object and sets its next pointer to itself

◆ CircSLelement() [2/4]

template<typename E>

bridges::datastructure::CircSLelement< E >::CircSLelement	(	E	val = `E()`,
		string	label = `string()`
	)

inline

This constructor creates an CircSLelement object of value "e" and label "label" and sets the next pointer to null

Parameters

label	the label of CircSLelement that shows up on the Bridges visualization
val	the generic object that this CircSLelement will hold

◆ CircSLelement() [3/4]

template<typename E>

bridges::datastructure::CircSLelement< E >::CircSLelement	(	E	e = `E()`,
		CircSLelement< E > *	next = `nullptr`
	)

inline

Creates a new element with value "e" and sets the next pointer to the CircSLelement referenced by the "next" argument

Parameters

e	the generic object that this CircSLelement will hold
next	the CircSLelement that should be assigned to the next pointer

◆ CircSLelement() [4/4]

template<typename E>

bridges::datastructure::CircSLelement< E >::CircSLelement ( CircSLelement< E > * next )

inline

Creates a new element and sets the next pointer to the CircSLelement "next"

Parameters

next	the CircSLelement that should be assigned to the next pointer

Member Function Documentation

◆ getDStype()

template<typename E>

virtual const string bridges::datastructure::CircSLelement< E >::getDStype ( ) const

inlineoverridevirtual

This method gets the data structure type

Returns: The date structure name

Reimplemented from bridges::datastructure::SLelement< E >.

◆ getNext()

template<typename E>

virtual CircSLelement<E>* bridges::datastructure::CircSLelement< E >::getNext ( )

inlineoverridevirtual

Retrieves the next CircSLelement

Returns: the next element in the list

Reimplemented from bridges::datastructure::SLelement< E >.

◆ setNext()

template<typename E>

void bridges::datastructure::CircSLelement< E >::setNext ( CircSLelement< E > * next )

inline

Sets the pointer to the next CircSLelement

Parameters

next	CircSLelement<E> that should be assigned to the next pointer

The documentation for this class was generated from the following file:

/home/erik/work/bridges/bridges-cxx/src/CircSLelement.h
