#include <SLelement.h>

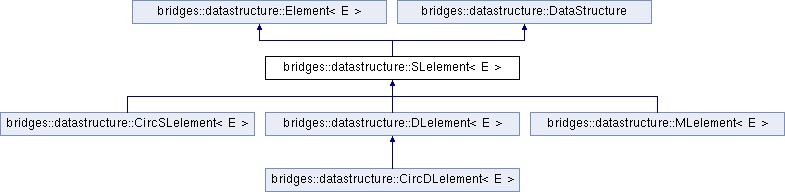

Inheritance diagram for bridges::datastructure::SLelement< E >:

Detailed Description

template<typename E>
class bridges::datastructure::SLelement< E >

The singly linked list element, derived from Element.

This class can be used to create singly linked elements, with a next SLelement pointer

See also: There is a tutorial about Singly Linked Lists : http://bridgesuncc.github.io/tutorials/SinglyLinkedList.html

Parameters

E	the application data type

Author: Kalpathi Subramanian

Date: 6/11/15, 7/12/19

Classes
class	SLelement_constlisthelper
	these are helper classes for SLelement for easy iteration in a range for loop. It is not meant to be created by the bridges user. But it may be returned by Bridges to provide an STL compliant list API. More...

class	SLelement_listhelper
	these are helper classes for SLelement for easy iteration in a range for loop. It is not meant to be created by the bridges user. But it may be returned by Bridges to provide an STL compliant list API. More...

Public Member Functions
	SLelement (SLelement *next, const E &val=E(), const string &lab=string())

	SLelement (const E &val=E(), const string &lab=string())

virtual const string	getDStype () const override

virtual SLelement *	getNext ()

virtual const SLelement *	getNext () const

void	setNext (SLelement *n)

Public Member Functions inherited from bridges::datastructure::Element< E >
	Element (const E &val=E(), const string &lab=string())

	Element (const Element &e)

Element &	operator= (const Element &e)

E &	operator= (E const &e)

virtual	~Element ()

ElementVisualizer *	getVisualizer ()

const ElementVisualizer *	getVisualizer () const

LinkVisualizer *	getLinkVisualizer (const Element *el)

LinkVisualizer *	getLinkVisualizer (const Element *el) const

string const &	getLabel () const

void	setLabel (const string &lab)

E const &	getValue () const

E &	getValue ()

void	setValue (const E &val)

void	setSize (const double &sz)
	Sets size of the element. More...

double	getSize () const

void	setColor (const Color &col)
	Set the color of the Element. More...

void	setColor (const string col)
	Set the color by name. More...

Color	getColor () const
	Get the current color of the element. More...

void	setOpacity (double opacity)

double	getOpacity ()

void	setShape (const Shape &shp)
	Set the shape of the element. More...

Shape	getShape () const
	Returns the shape of the element. More...

void	setLocation (const double &locX, const double &locY)

double	getLocationX () const

double	getLocationY () const

Public Member Functions inherited from bridges::datastructure::DataStructure
virtual	~DataStructure ()=default

Protected Member Functions
virtual const pair< string, string >	generateJSON (vector< const SLelement< E > *> nodes) const

virtual void	getListElements (vector< const SLelement< E > *> &nodes) const

Protected Member Functions inherited from bridges::datastructure::Element< E >
virtual const string	getElementRepresentation () const

Protected Attributes
SLelement *	next = nullptr

Protected Attributes inherited from bridges::datastructure::Element< E >
unordered_map< Element *, LinkVisualizer >	links

Additional Inherited Members
Static Protected Member Functions inherited from bridges::datastructure::Element< E >
static const string	getLinkRepresentation (const LinkVisualizer &lv, const string &src, const string &dest)

Constructor & Destructor Documentation

◆ SLelement() [1/2]

template<typename E>

bridges::datastructure::SLelement< E >::SLelement	(	SLelement< E > *	next,
		const E &	val = `E()`,
		const string &	lab = `string()`
	)

inline

Constructs an slelement with the provided value, label, and next slelement. The defaults will be used if not provided.

Parameters

val	The data to hold
lab	The label to show
next	The next SLelement

◆ SLelement() [2/2]

template<typename E>

bridges::datastructure::SLelement< E >::SLelement	(	const E &	val = `E()`,
		const string &	lab = `string()`
	)

inline

Constructs an slelement with the provided value and label, setting the next slelement to NULL. The defaults will be used if not provided.

Parameters

val	The data to hold
lab	The label to show

Member Function Documentation

◆ generateJSON()

template<typename E>

virtual const pair<string, string> bridges::datastructure::SLelement< E >::generateJSON ( vector< const SLelement< E > *> nodes ) const

inlineprotectedvirtual

Generates the JSON representation of the nodes and links

Returns: JSON string pair containing the nodes and links

◆ getDStype()

template<typename E>

virtual const string bridges::datastructure::SLelement< E >::getDStype ( ) const

inlineoverridevirtual

Returns the data structure name

Returns: The string representation of this data structure type

Implements bridges::datastructure::DataStructure.

Reimplemented in bridges::datastructure::MLelement< E >, bridges::datastructure::CircDLelement< E >, bridges::datastructure::CircSLelement< E >, and bridges::datastructure::DLelement< E >.

◆ getListElements()

template<typename E>

virtual void bridges::datastructure::SLelement< E >::getListElements ( vector< const SLelement< E > *> & nodes ) const

inlineprotectedvirtual

Get the list of nodes

Parameters

nodes The list of nodes

◆ getNext() [1/2]

template<typename E>

virtual SLelement* bridges::datastructure::SLelement< E >::getNext ( )

inlinevirtual

Returns the next element in the list

Returns: The next SLelement

Reimplemented in bridges::datastructure::MLelement< E >, bridges::datastructure::CircDLelement< E >, bridges::datastructure::CircSLelement< E >, and bridges::datastructure::DLelement< E >.

◆ getNext() [2/2]

template<typename E>

virtual const SLelement* bridges::datastructure::SLelement< E >::getNext ( ) const

inlinevirtual

Returns the next element in the list - Constant version

Returns: The next SLelement

Reimplemented in bridges::datastructure::MLelement< E >, bridges::datastructure::CircDLelement< E >, and bridges::datastructure::DLelement< E >.

◆ setNext()

template<typename E>

void bridges::datastructure::SLelement< E >::setNext ( SLelement< E > * n )

inline

Sets next link to "n"

Parameters

n	The next SLelement

Member Data Documentation

◆ next

template<typename E>

SLelement* bridges::datastructure::SLelement< E >::next = nullptr

protected

The documentation for this class was generated from the following file:

/home/erik/work/bridges/bridges-cxx/src/SLelement.h
