#include <CircDLelement.h>

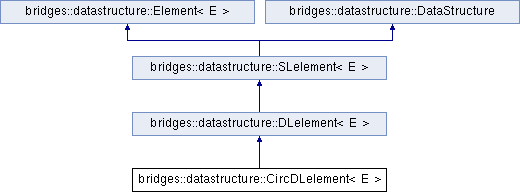

Inheritance diagram for bridges::datastructure::CircDLelement< E >:

Detailed Description

template<typename E>
class bridges::datastructure::CircDLelement< E >

This class can be used to instantiate Circular Doubly Linked List Elements.

Structurally they are the same as doubly linked elements except that each node constructed with the next and the previous pointers pointing to itself.

User's implementation of the circularly linked list needs to ensure that the last node's next pointer points to the first node and the first node's previous pointer points to the last node, as the visualization generation is dependent on this.

Elements have labels (string) that are displayed on the visualization. Elements take an generic object E as a user defined parameter, which can any native type or object. Elements contain a visualizer object for setting visual attributes (color, shape, opacity, size), necessary for displaying them in a web browser

See also: There is a tutorial about Circular Doubly Linked Lists : http://bridgesuncc.github.io/tutorials/CircularDoublyLinkedList.html

Author: Kalpathi Subramanian

Date: 10/5/16, 7/12/19

Classes
class	CircDLelement_constlisthelper
	these are helper classes for CircDLelement for easy iteration in a range for loop. It is not meant to be created by the bridges user. But it may be returned by Bridges to provide an STL compliant list API. More...

class	CircDLelement_listhelper
	these are helper classes for CircDLelement for easy iteration in a range for loop. It is not meant to be created by the bridges user. But it may be returned by Bridges to provide an STL compliant list API. More...

Public Member Functions
	CircDLelement ()

	CircDLelement (E e, string label)

	CircDLelement (CircDLelement< E > next, CircDLelement< E > prev)

	CircDLelement (E e, CircDLelement< E > next, CircDLelement< E > prev)

virtual const string	getDStype () const override

const CircDLelement< E > *	getNext () const override

virtual CircDLelement< E > *	getNext () override

void	setNext (CircDLelement< E > *next)

CircDLelement< E > *	getPrev () override

const CircDLelement< E > *	getPrev () const override

void	setPrev (CircDLelement< E > *prev)

Public Member Functions inherited from bridges::datastructure::DLelement< E >
	DLelement (DLelement n, DLelement p=nullptr, const E &val=E(), const string &lab=string())

	DLelement (const E &val=E(), const string &lab=string())

void	setNext (DLelement *n)

virtual void	setPrev (DLelement *p)

Public Member Functions inherited from bridges::datastructure::SLelement< E >
	SLelement (SLelement *next, const E &val=E(), const string &lab=string())

	SLelement (const E &val=E(), const string &lab=string())

void	setNext (SLelement *n)

Public Member Functions inherited from bridges::datastructure::Element< E >
	Element (const E &val=E(), const string &lab=string())

	Element (const Element &e)

Element &	operator= (const Element &e)

E &	operator= (E const &e)

virtual	~Element ()

ElementVisualizer *	getVisualizer ()

const ElementVisualizer *	getVisualizer () const

LinkVisualizer *	getLinkVisualizer (const Element *el)

LinkVisualizer *	getLinkVisualizer (const Element *el) const

string const &	getLabel () const

void	setLabel (const string &lab)

E const &	getValue () const

E &	getValue ()

void	setValue (const E &val)

void	setSize (const double &sz)
	Sets size of the element. More...

double	getSize () const

void	setColor (const Color &col)
	Set the color of the Element. More...

void	setColor (const string col)
	Set the color by name. More...

Color	getColor () const
	Get the current color of the element. More...

void	setOpacity (double opacity)

double	getOpacity ()

void	setShape (const Shape &shp)
	Set the shape of the element. More...

Shape	getShape () const
	Returns the shape of the element. More...

void	setLocation (const double &locX, const double &locY)

double	getLocationX () const

double	getLocationY () const

Public Member Functions inherited from bridges::datastructure::DataStructure
virtual	~DataStructure ()=default

Additional Inherited Members
Protected Member Functions inherited from bridges::datastructure::SLelement< E >
virtual const pair< string, string >	generateJSON (vector< const SLelement< E > *> nodes) const

virtual void	getListElements (vector< const SLelement< E > *> &nodes) const

Protected Member Functions inherited from bridges::datastructure::Element< E >
virtual const string	getElementRepresentation () const

Static Protected Member Functions inherited from bridges::datastructure::Element< E >
static const string	getLinkRepresentation (const LinkVisualizer &lv, const string &src, const string &dest)

Protected Attributes inherited from bridges::datastructure::SLelement< E >
SLelement *	next = nullptr

Protected Attributes inherited from bridges::datastructure::Element< E >
unordered_map< Element *, LinkVisualizer >	links

Constructor & Destructor Documentation

◆ CircDLelement() [1/4]

template<typename E>

bridges::datastructure::CircDLelement< E >::CircDLelement ( )

inline

Constructs an empty CircDLelement with next and prev pointers set to itself

◆ CircDLelement() [2/4]

template<typename E>

bridges::datastructure::CircDLelement< E >::CircDLelement	(	E	e,
		string	label
	)

inline

Constructs a CircDLelement labeled "label", holding an object "e", with next and prev pointers set to itself

Parameters

e	the genereic object that this CircDLelement is holding
label	the label for this CircDLelement that shows up on the Bridges visualization

◆ CircDLelement() [3/4]

template<typename E>

bridges::datastructure::CircDLelement< E >::CircDLelement	(	CircDLelement< E >	next,
		CircDLelement< E >	prev
	)

inline

Constructs an empty DLelement with the next pointer set to the CircDLelement "next" and the prev pointer set to CircDLelement "prev".

Parameters

next	the DLelement that should be assigned to the next pointer
prev	the DLelement that should be assigned to the prev pointer

◆ CircDLelement() [4/4]

template<typename E>

bridges::datastructure::CircDLelement< E >::CircDLelement	(	E	e,
		CircDLelement< E >	next,
		CircDLelement< E >	prev
	)

inline

Constructs a DLelement holding an object "e", with the next pointer set to the DLelement "next" and the prev pointer set to DLelement "prev".

Parameters

e	the genereic object that this CircDLelement is holding
next	the CircDLelement that should be assigned to the next pointer
prev	the CircDLelement that should be assigned to the prev pointer

Member Function Documentation

◆ getDStype()

template<typename E>

virtual const string bridges::datastructure::CircDLelement< E >::getDStype ( ) const

inlineoverridevirtual

This method gets the data structure type

Returns: The date structure type as a string

Reimplemented from bridges::datastructure::DLelement< E >.

◆ getNext() [1/2]

template<typename E>

const CircDLelement<E>* bridges::datastructure::CircDLelement< E >::getNext ( ) const

inlineoverridevirtual

This method returns the pointer to the next DLelement - const version

Returns: the DLelement assigned to the next pointer

Reimplemented from bridges::datastructure::DLelement< E >.

◆ getNext() [2/2]

template<typename E>

virtual CircDLelement<E>* bridges::datastructure::CircDLelement< E >::getNext ( )

inlineoverridevirtual

Retrieves the next CircSLelement

Returns: CircSLelement<E> assigned to next

Reimplemented from bridges::datastructure::DLelement< E >.

◆ getPrev() [1/2]

template<typename E>

CircDLelement<E>* bridges::datastructure::CircDLelement< E >::getPrev ( )

inlineoverridevirtual

This method returns the pointer to the previous DLelement

Returns: the DLelement assigned to the prev pointer

Reimplemented from bridges::datastructure::DLelement< E >.

◆ getPrev() [2/2]

template<typename E>

const CircDLelement<E>* bridges::datastructure::CircDLelement< E >::getPrev ( ) const

inlineoverridevirtual

This method returns the pointer to the previous DLelement

Returns: the DLelement assigned to the prev pointer

Reimplemented from bridges::datastructure::DLelement< E >.

◆ setNext()

template<typename E>

void bridges::datastructure::CircDLelement< E >::setNext ( CircDLelement< E > * next )

inline

This method sets the pointer to the next DLelement

Parameters

next	the DLelement that should be assigned to the next pointer

◆ setPrev()

template<typename E>

void bridges::datastructure::CircDLelement< E >::setPrev ( CircDLelement< E > * prev )

inline

This method sets the pointer to the previous DLelement

Parameters

prev	the DLelement that should be assigned to the prev pointer

The documentation for this class was generated from the following file:

/home/erik/work/bridges/bridges-cxx/src/CircDLelement.h
