#include <DLelement.h>

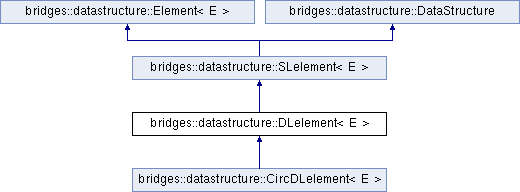

Inheritance diagram for bridges::datastructure::DLelement< E >:

Detailed Description

template<typename E>
class bridges::datastructure::DLelement< E >

The doubly linked list element, derived from SLelement.

This class extends the SLelelement class by adding a previous DLelement pointer

There is a tutorial about Doubly Linked Lists : http://bridgesuncc.github.io/tutorials/DoublyLinkedList.html

Parameters

E	the application data type

Author: Kalpathi Subramanian

Date: 6/11/15, 7/12/19

Classes
class	DLelement_constlisthelper
	these are helper classes for DLelement for easy iteration in a range for loop. It is not meant to be created by the bridges user. But it may be returned by Bridges to provide an STL compliant list API. More...

class	DLelement_listhelper
	these are helper classes for DLelement for easy iteration in a range for loop. It is not meant to be created by the bridges user. But it may be returned by Bridges to provide an STL compliant list API. More...

Public Member Functions
	DLelement (DLelement n, DLelement p=nullptr, const E &val=E(), const string &lab=string())

	DLelement (const E &val=E(), const string &lab=string())

virtual const string	getDStype () const override

virtual DLelement *	getNext () override

virtual const DLelement *	getNext () const override

void	setNext (DLelement *n)

virtual DLelement *	getPrev ()

virtual const DLelement *	getPrev () const

virtual void	setPrev (DLelement *p)

Public Member Functions inherited from bridges::datastructure::SLelement< E >
	SLelement (SLelement *next, const E &val=E(), const string &lab=string())

	SLelement (const E &val=E(), const string &lab=string())

void	setNext (SLelement *n)

Public Member Functions inherited from bridges::datastructure::Element< E >
	Element (const E &val=E(), const string &lab=string())

	Element (const Element &e)

Element &	operator= (const Element &e)

E &	operator= (E const &e)

virtual	~Element ()

ElementVisualizer *	getVisualizer ()

const ElementVisualizer *	getVisualizer () const

LinkVisualizer *	getLinkVisualizer (const Element *el)

LinkVisualizer *	getLinkVisualizer (const Element *el) const

string const &	getLabel () const

void	setLabel (const string &lab)

E const &	getValue () const

E &	getValue ()

void	setValue (const E &val)

void	setSize (const double &sz)
	Sets size of the element. More...

double	getSize () const

void	setColor (const Color &col)
	Set the color of the Element. More...

void	setColor (const string col)
	Set the color by name. More...

Color	getColor () const
	Get the current color of the element. More...

void	setOpacity (double opacity)

double	getOpacity ()

void	setShape (const Shape &shp)
	Set the shape of the element. More...

Shape	getShape () const
	Returns the shape of the element. More...

void	setLocation (const double &locX, const double &locY)

double	getLocationX () const

double	getLocationY () const

Public Member Functions inherited from bridges::datastructure::DataStructure
virtual	~DataStructure ()=default

Additional Inherited Members
Protected Member Functions inherited from bridges::datastructure::SLelement< E >
virtual const pair< string, string >	generateJSON (vector< const SLelement< E > *> nodes) const

virtual void	getListElements (vector< const SLelement< E > *> &nodes) const

Protected Member Functions inherited from bridges::datastructure::Element< E >
virtual const string	getElementRepresentation () const

Static Protected Member Functions inherited from bridges::datastructure::Element< E >
static const string	getLinkRepresentation (const LinkVisualizer &lv, const string &src, const string &dest)

Protected Attributes inherited from bridges::datastructure::SLelement< E >
SLelement *	next = nullptr

Protected Attributes inherited from bridges::datastructure::Element< E >
unordered_map< Element *, LinkVisualizer >	links

Constructor & Destructor Documentation

◆ DLelement() [1/2]

template<typename E>

bridges::datastructure::DLelement< E >::DLelement	(	DLelement< E > *	n,
		DLelement< E > *	p = `nullptr`,
		const E &	val = `E()`,
		const string &	lab = `string()`
	)

inline

Constructs a dlelement with the provided value, label, next and previous elements. The defaults will be used if not provided.

Parameters

n	The next DLelement
p	The previous DLelement
val	The data to hold
lab	The label to show

◆ DLelement() [2/2]

template<typename E>

bridges::datastructure::DLelement< E >::DLelement	(	const E &	val = `E()`,
		const string &	lab = `string()`
	)

inline

Constructs a dlelement with the provided value and label, setting the next and previous dlelements to NULL. The defaults will be used if not provided.

Parameters

val	The data to hold
lab	The label to show

Member Function Documentation

◆ getDStype()

template<typename E>

virtual const string bridges::datastructure::DLelement< E >::getDStype ( ) const

inlineoverridevirtual

Return the data structure type

Returns: The name of this data structure type

Reimplemented from bridges::datastructure::SLelement< E >.

Reimplemented in bridges::datastructure::CircDLelement< E >.

◆ getNext() [1/2]

template<typename E>

virtual DLelement* bridges::datastructure::DLelement< E >::getNext ( )

inlineoverridevirtual

Return the next DL element.

Returns: The next DLelement

Reimplemented from bridges::datastructure::SLelement< E >.

Reimplemented in bridges::datastructure::CircDLelement< E >.

◆ getNext() [2/2]

template<typename E>

virtual const DLelement* bridges::datastructure::DLelement< E >::getNext ( ) const

inlineoverridevirtual

Constant version

Returns: The next DLelement

Reimplemented from bridges::datastructure::SLelement< E >.

Reimplemented in bridges::datastructure::CircDLelement< E >.

◆ getPrev() [1/2]

template<typename E>

virtual DLelement* bridges::datastructure::DLelement< E >::getPrev ( )

inlinevirtual

Returns the previous element in the list

Returns: The previous DLelement

Reimplemented in bridges::datastructure::CircDLelement< E >.

◆ getPrev() [2/2]

template<typename E>

virtual const DLelement* bridges::datastructure::DLelement< E >::getPrev ( ) const

inlinevirtual

Returns the previous element - Constant version

Returns: The previous DLelement

Reimplemented in bridges::datastructure::CircDLelement< E >.

◆ setNext()

template<typename E>

void bridges::datastructure::DLelement< E >::setNext ( DLelement< E > * n )

inline

Sets next element to "n"

Parameters

n	The next DLelement

◆ setPrev()

template<typename E>

virtual void bridges::datastructure::DLelement< E >::setPrev ( DLelement< E > * p )

inlinevirtual

Sets prev element to "p"

Parameters

p	The previous element

The documentation for this class was generated from the following file:

/home/erik/work/bridges/bridges-cxx/src/DLelement.h
