#include <MLelement.h>

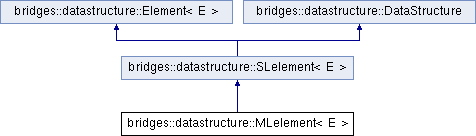

Inheritance diagram for bridges::datastructure::MLelement< E >:

Detailed Description

template<typename E>
class bridges::datastructure::MLelement< E >

This class can be used to instantiate Multi-list Elements.

This class extends SLelement (singly linked list element) to build multi-lists; Multilist elements contain a tag (boolean) that indicates if the element contains a sublist or not; if the tag is true, then there is a sublist beginning at this node and the starting point is the `sublist' field in the element. If the tag is false, then the list continues as a normal singly linked list. The sublists are re recursive: any sublist can have its own sublists and so on. As in singly linked elements, the next pointer points to the following list element and each element contains a generic application specific object.

Multi-list elements contain a visualizer (ElementVisualizer) object for setting visual attributes (color, shape, opacity, size), necessary for displaying them in a web browser.

Elements also have a LinkVisualizer object, that is used when they are linked to another element, appropriate for setting link attributes, for instance, between the current element and its next element. In this case, the link in question is that which connects the element to the following elements; a similar logic follows for sublists.

See also: There is a tutorial about Multi Lists : http://bridgesuncc.github.io/tutorials/MultiList.html

Author: , Kalpathi Subramanian

Date: 5/24/17, 7/12/19

Parameters

E	The generic parameter object that is part of this element, representing either application specific data, or a pointer to a sublist.

Public Member Functions
	MLelement (const E &val=E(), const string &lab=string())

	MLelement (string label)

	MLelement (E e, MLelement< E > *next)

void	setSubList (MLelement< E > *sl)

MLelement *	getSubList ()

MLelement< E > *	getNext () override

MLelement< E > *	getNext () const override

void	setNext (MLelement< E > *n)

void	setTag (bool t)
	Sets the tag of the element. More...

bool	getTag ()
	Gets the tag of the element. More...

virtual const string	getDStype () const override

Public Member Functions inherited from bridges::datastructure::SLelement< E >
	SLelement (SLelement *next, const E &val=E(), const string &lab=string())

	SLelement (const E &val=E(), const string &lab=string())

void	setNext (SLelement *n)

Public Member Functions inherited from bridges::datastructure::Element< E >
	Element (const E &val=E(), const string &lab=string())

	Element (const Element &e)

Element &	operator= (const Element &e)

E &	operator= (E const &e)

virtual	~Element ()

ElementVisualizer *	getVisualizer ()

const ElementVisualizer *	getVisualizer () const

LinkVisualizer *	getLinkVisualizer (const Element *el)

LinkVisualizer *	getLinkVisualizer (const Element *el) const

string const &	getLabel () const

void	setLabel (const string &lab)

E const &	getValue () const

E &	getValue ()

void	setValue (const E &val)

void	setSize (const double &sz)
	Sets size of the element. More...

double	getSize () const

void	setColor (const Color &col)
	Set the color of the Element. More...

void	setColor (const string col)
	Set the color by name. More...

Color	getColor () const
	Get the current color of the element. More...

void	setOpacity (double opacity)

double	getOpacity ()

void	setShape (const Shape &shp)
	Set the shape of the element. More...

Shape	getShape () const
	Returns the shape of the element. More...

void	setLocation (const double &locX, const double &locY)

double	getLocationX () const

double	getLocationY () const

Public Member Functions inherited from bridges::datastructure::DataStructure
virtual	~DataStructure ()=default

Protected Attributes
MLelement< E > *	sub_list = nullptr

bool	tag = false

Protected Attributes inherited from bridges::datastructure::SLelement< E >
SLelement *	next = nullptr

Protected Attributes inherited from bridges::datastructure::Element< E >
unordered_map< Element *, LinkVisualizer >	links

Additional Inherited Members
Protected Member Functions inherited from bridges::datastructure::SLelement< E >
virtual const pair< string, string >	generateJSON (vector< const SLelement< E > *> nodes) const

virtual void	getListElements (vector< const SLelement< E > *> &nodes) const

Protected Member Functions inherited from bridges::datastructure::Element< E >
virtual const string	getElementRepresentation () const

Static Protected Member Functions inherited from bridges::datastructure::Element< E >
static const string	getLinkRepresentation (const LinkVisualizer &lv, const string &src, const string &dest)

Constructor & Destructor Documentation

◆ MLelement() [1/3]

template<typename E>

bridges::datastructure::MLelement< E >::MLelement	(	const E &	val = `E()`,
		const string &	lab = `string()`
	)

inline

This constructor creates an MLelement object and sets the next pointer to null

Parameters

val	generic object
lab	label

◆ MLelement() [2/3]

template<typename E>

bridges::datastructure::MLelement< E >::MLelement ( string label )

inline

This constructor creates an SLelement object of generic parameter object E, and label "label" and sets the next pointer to null

Parameters

label	the label of MLelement that shows up on the Bridges visualization
e	the generic object that this SLelement will hold

◆ MLelement() [3/3]

template<typename E>

bridges::datastructure::MLelement< E >::MLelement	(	E	e,
		MLelement< E > *	next
	)

inline

Creates a new element with value "e" and sets the next pointer to the MLelement referenced by the "next" argument

Parameters

e	the generic object that this element will hold
next	the element that should be assigned to the next pointer

Member Function Documentation

◆ getDStype()

template<typename E>

virtual const string bridges::datastructure::MLelement< E >::getDStype ( ) const

inlineoverridevirtual

Returns: The string representation of this data structure type

Reimplemented from bridges::datastructure::SLelement< E >.

◆ getNext() [1/2]

template<typename E>

MLelement<E>* bridges::datastructure::MLelement< E >::getNext ( )

inlineoverridevirtual

Retrieves the element following this element

Returns: MLelement<E> assigned to next

Reimplemented from bridges::datastructure::SLelement< E >.

◆ getNext() [2/2]

template<typename E>

MLelement<E>* bridges::datastructure::MLelement< E >::getNext ( ) const

inlineoverridevirtual

Retrieves the element following this element - const version

Returns: MLelement<E> assigned to next

Reimplemented from bridges::datastructure::SLelement< E >.

◆ getSubList()

template<typename E>

MLelement* bridges::datastructure::MLelement< E >::getSubList ( )

inline

Gets the sublist at this node, if it exists

Returns: the sublist head element, if it exists

◆ getTag()

template<typename E>

bool bridges::datastructure::MLelement< E >::getTag ( )

inline

Gets the tag of the element.

Returns: tag of the element

◆ setNext()

template<typename E>

void bridges::datastructure::MLelement< E >::setNext ( MLelement< E > * n )

inline

Sets the element to point to the next MLelement

Parameters

n	MLelement<E> that should be assigned to the next pointer

◆ setSubList()

template<typename E>

void bridges::datastructure::MLelement< E >::setSubList ( MLelement< E > * sl )

inline

Sets the start of a new sublist. to the MLelement "next"

Parameters

sl	the MLelement that is the beginning of a sublist

◆ setTag()

template<typename E>

void bridges::datastructure::MLelement< E >::setTag ( bool t )

inline

Sets the tag of the element.

Parameters

t	tag to set

Member Data Documentation

◆ sub_list

template<typename E>

MLelement<E>* bridges::datastructure::MLelement< E >::sub_list = nullptr

protected

◆ tag

template<typename E>

bool bridges::datastructure::MLelement< E >::tag = false

protected

The documentation for this class was generated from the following file:

/home/erik/work/bridges/bridges-cxx/src/MLelement.h
