bridges.base.Element< E > Class Template Reference

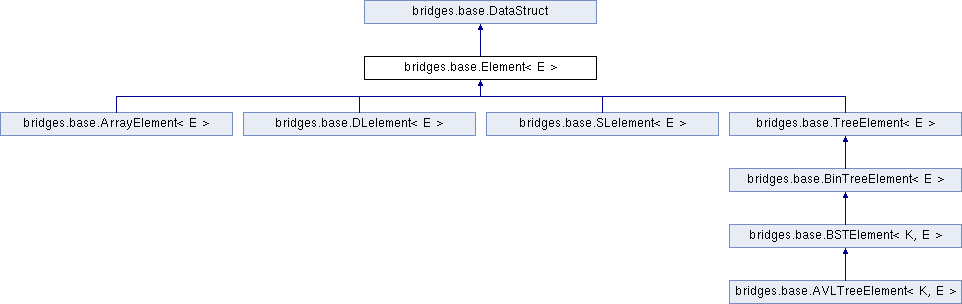

Inheritance diagram for bridges.base.Element< E >:

Public Member Functions
	Element ()
	Element (E val)
	Element (String label, E val)
	Element (Element< E > original)
String	getIdentifier ()
ElementVisualizer	getVisualizer ()
void	setVisualizer (ElementVisualizer visualizer)
LinkVisualizer	getLinkVisualizer (Element< E > el)
String	getClassName ()
int	compareTo (Element< E > e1)
boolean	equals (Element< E > e1)
String	getRepresentation ()
String	getLabel ()
void	setLabel (String label)
String	arrangeLabel (String label, int wordNumber)
E	getValue ()
void	setValue (E value)
String	toString ()

Protected Member Functions
String	getDataStructType ()
void	validateVal (E value)
Protected Member Functions inherited from bridges.base.DataStruct
abstract String	getDataStructType ()

Additional Inherited Members
Protected Attributes inherited from bridges.base.DataStruct
String	QUOTE = "\""

Detailed Description

This is the Superclass Element with SLelement, DLelement, ArrayElement, TreeElement, BSTElement subclasses it contains the Element Visualizer object label field derived from the E (application data) value an object of E data type: integer, string, Tweet, Actor, Movie, EarthquakeTweet identifier field automatically generated

Author

mihai

Parameters

generic

<E>

Constructor & Destructor Documentation

bridges.base.Element< E >.Element

(

)

Element constructor creates an ElementVisualizer object sets a unique identifier for the current Element normally used from subclasses

bridges.base.Element< E >.Element

(

E

val

)

the constructor of Element

Parameters

val	will be used to construct Element

bridges.base.Element< E >.Element	(	String	label,
		E	val
	)

the constructor of Element

Parameters

label	the string that is visible on the Bridges Visualization
val	will be used to construct Element

bridges.base.Element< E >.Element

(

Element< E >

original

)

performing deep copy of an element when needed

Parameters

original

the Element that is to be copied

Member Function Documentation

String bridges.base.Element< E >.arrangeLabel	(	String	label,
		int	wordNumber
	)

This method formats the label string using a predefine pattern (DIVIDE_KEY) and replaces the pattern with the string characters hold by the INSERT_STRING global variable

Parameters

label

wordNumber

in very long strings in the case where the whitespace \s is chosen as a key the wordNumber can be set to replace the whitespace with a newline character \n at a given number of words (every second or third word) The default value is 0. In most situations we want to replace all patterns found. for more complex patterns the key must be changed like so "((John) (.+?))" returns "John firstWordAfterJohn": John writes, John doe, John eats etc. (\w) matches any word (\s) one white space (\s*) zero or more white spaces, (\s+) one or more

Returns

int bridges.base.Element< E >.compareTo

(

Element< E >

e1

)

Comparison between 2 elements

Parameters

e1	the Element to compare this with

Returns

0 if the 2 elements have the same label and the same identifier and a nonZero integer otherwise

boolean bridges.base.Element< E >.equals

(

Element< E >

e1

)

This method compares 2 Elements

Parameters

e1

Returns

boolean

String bridges.base.Element< E >.getClassName

(

)

This method returns the name of the class

Returns

the class name "Element"

String bridges.base.Element< E >.getDataStructType ( )

protected

String bridges.base.Element< E >.getIdentifier

(

)

this method returns the element's unique identifier

Returns

the string identifier

String bridges.base.Element< E >.getLabel

(

)

This method returns the existing value of the label fields

Returns

the label of the Element that shows up on the Bridges Visualization

LinkVisualizer bridges.base.Element< E >.getLinkVisualizer

(

Element< E >

el

)

Returns the Element's link visualizer object that is linked to element el Element el – the element terminating the link

Returns

the link visualizer

String bridges.base.Element< E >.getRepresentation

(

)

Internal code for getting the properties of the Element object. It produces (without the spaces or newlines): { "name": "Some label", "other CSS properties like color": any_JSON_value }

Returns

the encoded JSON string

E bridges.base.Element< E >.getValue

(

)

this method returns the value E for the current Element

Returns

the value

ElementVisualizer bridges.base.Element< E >.getVisualizer

(

)

Returns the Element's visualizer object

Returns

the visualizer

void bridges.base.Element< E >.setLabel

(

String

label

)

This method sets the label

Parameters

label

the label to set

void bridges.base.Element< E >.setValue

(

E

value

)

This method sets the value field to the E argument value

Parameters

value

the value to set

void bridges.base.Element< E >.setVisualizer

(

ElementVisualizer

visualizer

)

This method sets the visualizer object for the current element object

Parameters

visualizer

the visualizer to set

String bridges.base.Element< E >.toString

(

)

void bridges.base.Element< E >.validateVal ( E  value )

protected

Validates the Element's value when the Element is created A non null value is expected this will be unnecessary after we modify the server

Parameters

ELement

value

---

The documentation for this class was generated from the following file:

• link/base/Element.java
