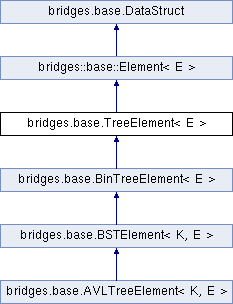

Inheritance diagram for bridges.base.TreeElement< E >:

Public Member Functions
	TreeElement ()

	TreeElement (E e)

	TreeElement (String label, E e)

	TreeElement (TreeElement< E > left, TreeElement< E > right)

	TreeElement (E e, TreeElement< E > left, TreeElement< E > right)

String	getDataStructType ()

void	addChild (TreeElement< E > child)

int	getNumberOfChildren ()

void	setChild (int index, TreeElement< E > child)

TreeElement< E >	getChild (int index)

Public Member Functions inherited from bridges.base.Element< E >
	Element ()

	Element (E val)

	Element (String label, E val)

	Element (Element< E > original)

String	getIdentifier ()

ElementVisualizer	getVisualizer ()

void	setVisualizer (ElementVisualizer visualizer)

LinkVisualizer	getLinkVisualizer (Element< E > el)

String	getClassName ()

int	compareTo (Element< E > e1)

boolean	equals (Element< E > e1)

String	getRepresentation ()

String	getLabel ()

void	setLabel (String label)

String	arrangeLabel (String label, int wordNumber)

E	getValue ()

void	setValue (E value)

String	toString ()

Additional Inherited Members
Protected Member Functions inherited from bridges.base.Element< E >
String	getDataStructType ()

void	validateVal (E value)

Protected Member Functions inherited from bridges.base.DataStruct
abstract String	getDataStructType ()

Protected Attributes inherited from bridges.base.DataStruct
String	QUOTE = "\""

Constructor & Destructor Documentation

bridges.base.TreeElement< E >.TreeElement ( )

Constructs an empty TreeElement with first two children set to null.

bridges.base.TreeElement< E >.TreeElement ( E e )

Constructs a TreeElement holding an object "e" with first two children set to null.

Parameters

e	the generic object that TreeElement will hold

bridges.base.TreeElement< E >.TreeElement	(	String	label,
		E	e
	)

Constructs a TreeElement with label set to "label", holding an object "e".

Parameters

label	the label of TreeElement that shows up on the Bridges visualization
e	the generic object that TreeElement will hold

bridges.base.TreeElement< E >.TreeElement	(	TreeElement< E >	left,
		TreeElement< E >	right
	)

Constructs an empty TreeElement left pointer pointing to child 0 and right pointer pointing to child 1.

Parameters

left	the TreeElement to be assigned to the child 0 of this TreeElement
right	the TreeElement to be assigned to the child 1 of this TreeElement

bridges.base.TreeElement< E >.TreeElement	(	E	e,
		TreeElement< E >	left,
		TreeElement< E >	right
	)

Constructs a TreeElement holding the object "e", left pointer pointing to first child and right pointer pointing to second child

Parameters

e	the generic object that TreeElement will hold
left	the TreeElement to be assigned to the first child of this TreeElement
right	the TreeElement to be assigned to the second child of this TreeElement

Member Function Documentation

void bridges.base.TreeElement< E >.addChild ( TreeElement< E > child )

Adds a child to the node

TreeElement<E> bridges.base.TreeElement< E >.getChild ( int index )

gets a child at a particular index

Parameters

index into the list of children

String bridges.base.TreeElement< E >.getDataStructType ( )

This method gets the data structure type

int bridges.base.TreeElement< E >.getNumberOfChildren ( )

Returns the number of children at this node

void bridges.base.TreeElement< E >.setChild	(	int	index,
		TreeElement< E >	child
	)

adds a child to the node - will be added at the next open position

Parameters

child to be added

The documentation for this class was generated from the following file:
