bridges.tree_element.TreeElement Class Reference

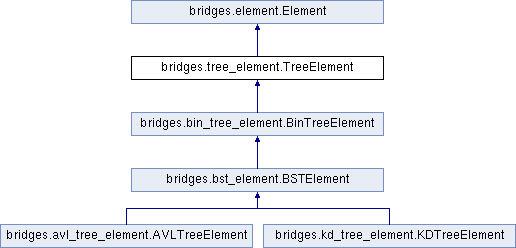

Inheritance diagram for bridges.tree_element.TreeElement:

Detailed Description

This class extends Element to represent general trees with arbitrary number of children.

TreeElement nodes can have an arbitrary number of child nodes(held in in a vector in the order in which they were added). The visualization of trees assumes that the children are drawn in order from left to right.

Tree Elements have labels (string) that are displayed on the visualization. Elements take an generic object E as a user defined parameter, which can be any native type or object.

Elements contain a visualizer (ElementVisualizer) object for setting visual attributes (color, shape, opacity, size), necessary for displaying them in a web browser.

Elements also have a LinkVisualizer object that is used when they are linked to another element, appropriate for setting link attributes, between parent and child nodes.

Author

Matthew McQuaigue

Date

2018, 7/23/19

See also

Kd tree tutorial http://bridgesuncc.github.io/tutorials/Tree.html

Public Member Functions
def	__init__ (self, kwargs)
	Constructor for Tree Element. More...
def	get_data_structure_type (self)
	Gets the data structure type. More...
def	add_child (self, child)
	Adds a child to this parent node. More...
def	get_number_of_children (self)
	Get the number of children at this node. More...
def	set_child
	Adds a child to the node that will be added at the next open position. More...
def	get_child
	Gets a child at particular index. More...
def	get_data_structure_representation (self)
	Get the hierarchical JSON of the tree representation (internal use only) More...
Public Member Functions inherited from bridges.element.Element
def	get_data_structure_type (self)
	Get the data structure representation. More...
def	__init__ (self, kwargs)
def	value (self)
	Getter for the value this element is holding. More...
def	value (self, val)
	Setter for the value of an element. More...
def	identifier (self)
	Getter for the element identifier. More...
def	identifier
	Setter for the element identifier. More...
def	visualizer (self)
	Getter for the element visualizer. More...
def	visualizer
	Setter function for this element visualizer. More...
def	get_link_visualizer (self, el)
def	set_link_visualizer (self, el)
	Setter for the link visualizer of this element. More...
def	remove_link_visualizer (self, el)
	Deleter function for the lik visualizer of this element. More...
def	label (self)
	Getter for the element's label. More...
def	label (self, label)
	Setter for the element's label. More...
def	size (self)
	Getter for the element's size. More...
def	size (self, sz)
	Setter for the element's size. More...
def	color (self)
	Getter for the element's color. More...
def	color (self, col)
	Setter for the element's size. More...
def	opacity (self)
	Getter for the element's opacity. More...
def	opacity (self, op)
	Setter for the element's opacity. More...
def	shape (self)
	Getter for the element's shape type. More...
def	shape (self, shp)
	Setter for the element's shape. More...
def	id (self)
def	set_location (self, locX, locY)
	Setter for the element's location. More...
def	get_locationX (self)
	Getter for the element's location in X. More...
def	get_locationY (self)
	Getter for the element's location in Y. More...
def	get_element_representation (self)
	Getter for the element's JSON representation (for internal use) More...
def	get_link_representation (self, lv, src, dest)
	Getter for the JSON representation of the element's link (for internal use) More...

Public Attributes
	children
Public Attributes inherited from bridges.element.Element
	color
	opacity

Static Public Attributes
string	QUOTE = "\""
string	COMMA = ","
string	COLON = ":"
string	OPEN_CURLY = "{"
string	CLOSE_CURLY = "}"
string	OPEN_PAREN = "("
string	CLOSE_PAREN = ")"
string	OPEN_BOX = "["
string	CLOSE_BOX = "]"
Static Public Attributes inherited from bridges.element.Element
int	ids = 0

Constructor & Destructor Documentation

__init__()

def bridges.tree_element.TreeElement.__init__	(		self,
			kwargs,
			None
	)

Constructor for Tree Element.

Parameters

label	The label for the tree element that shows in visualization
e	the generic object that the tree element will hold
left	the tree element assigned to child 0
right	the tree element assigned to child 1

Returns

None

Member Function Documentation

add_child()

def bridges.tree_element.TreeElement.add_child	(		self,
			child,
			None
	)

Adds a child to this parent node.

Parameters

child

the child node to add

Returns

None

get_child()

def bridges.tree_element.TreeElement.get_child	(		self,
			index
	)

Gets a child at particular index.

Parameters

index

index to get child

Returns

the child element at this index

Exceptions

ValueError

if the index is higher than the number of children

get_data_structure_representation()

def bridges.tree_element.TreeElement.get_data_structure_representation	(		self,
			dict
	)

Get the hierarchical JSON of the tree representation (internal use only)

Returns

dict representing the data structures json

get_data_structure_type()

def bridges.tree_element.TreeElement.get_data_structure_type	(		self,
			str
	)

Gets the data structure type.

Returns

str representing the data structure type

get_number_of_children()

def bridges.tree_element.TreeElement.get_number_of_children	(		self,
			int
	)

Get the number of children at this node.

Returns

int representing the number of children

set_child()

def bridges.tree_element.TreeElement.set_child	(		self,
			index
	)

Adds a child to the node that will be added at the next open position.

Parameters

index	index to add child
child	child to add to tree

Returns

None

Exceptions

ValueError

If the index is higher than the number of children

Member Data Documentation

children

bridges.tree_element.TreeElement.children

CLOSE_BOX

string bridges.tree_element.TreeElement.CLOSE_BOX = "]"

static

CLOSE_CURLY

string bridges.tree_element.TreeElement.CLOSE_CURLY = "}"

static

CLOSE_PAREN

string bridges.tree_element.TreeElement.CLOSE_PAREN = ")"

static

COLON

string bridges.tree_element.TreeElement.COLON = ":"

static

COMMA

string bridges.tree_element.TreeElement.COMMA = ","

static

OPEN_BOX

string bridges.tree_element.TreeElement.OPEN_BOX = "["

static

OPEN_CURLY

string bridges.tree_element.TreeElement.OPEN_CURLY = "{"

static

OPEN_PAREN

string bridges.tree_element.TreeElement.OPEN_PAREN = "("

static

QUOTE

string bridges.tree_element.TreeElement.QUOTE = "\""

static

---

The documentation for this class was generated from the following file:

• /home/erik/work/bridges/bridges-python/bridges/tree_element.py
