#include <AVLTreeElement.h>

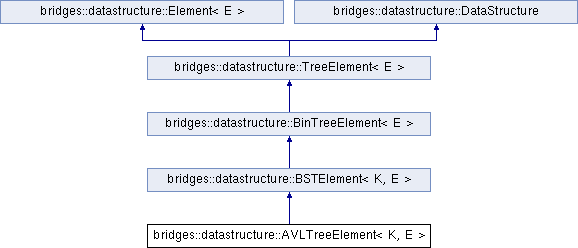

Inheritance diagram for bridges::datastructure::AVLTreeElement< K, E >:

Detailed Description

template<typename K, typename E>
class bridges::datastructure::AVLTreeElement< K, E >

This class can be used to create avl tree elements, derived from BSTElement.

This class extends the BSTElement class by adding height and balance factor attributes to allow for easier use in a avl tree implementation.

Generic Parameters: K that is the search key type, E the application data type

Author: Kalpathi Subramanian

Date: 6/18/15, 7/15/16

There is a tutorial about AVLs : http://bridgesuncc.github.io/tutorials/AVL.html

Public Member Functions
	AVLTreeElement (const K &k, const E &val=E(), const string &lab=string())

virtual const string	getDStype () const override

int	getHeight () const

void	setHeight (const int &h)

int	getBalanceFactor () const

void	setBalanceFactor (const int &bf)

virtual AVLTreeElement *	getLeft () override

virtual const AVLTreeElement *	getLeft () const override

void	setLeft (AVLTreeElement *l)

virtual AVLTreeElement *	getRight () override

virtual const AVLTreeElement *	getRight () const override

void	setRight (AVLTreeElement *r)

Public Member Functions inherited from bridges::datastructure::BSTElement< K, E >
	BSTElement (const K &k, BSTElement l, BSTElement r, const E &val=E(), const string &lab=string())

	BSTElement (const K &k, const E &val=E(), const string &lab=string())

K	getKey () const

void	setKey (const K &k)

void	setLeft (BSTElement *l)

void	setRight (BSTElement *r)

Public Member Functions inherited from bridges::datastructure::BinTreeElement< E >
	BinTreeElement (BinTreeElement l, BinTreeElement r, const E &e=E(), const string &lab=string())

	BinTreeElement (const E &e=E(), const string &lab=string())

void	setLeft (BinTreeElement *l)

void	setRight (BinTreeElement *r)

Public Member Functions inherited from bridges::datastructure::TreeElement< E >
	TreeElement (const E &e=E(), const string &lab=string())

vector< TreeElement * > &	getChildren ()

const vector< TreeElement * > &	getChildren () const

TreeElement *	getChild (const int &n)

const TreeElement *	getChild (const int &n) const

void	addChild (TreeElement *child)

void	setChild (const size_t &index, TreeElement *kid)

Public Member Functions inherited from bridges::datastructure::Element< E >
	Element (const E &val=E(), const string &lab=string())

	Element (const Element &e)

Element &	operator= (const Element &e)

E &	operator= (E const &e)

virtual	~Element ()

ElementVisualizer *	getVisualizer ()

const ElementVisualizer *	getVisualizer () const

LinkVisualizer *	getLinkVisualizer (const Element *el)

LinkVisualizer *	getLinkVisualizer (const Element *el) const

string const &	getLabel () const

void	setLabel (const string &lab)

E const &	getValue () const

E &	getValue ()

void	setValue (const E &val)

void	setSize (const double &sz)
	Sets size of the element. More...

double	getSize () const

void	setColor (const Color &col)
	Set the color of the Element. More...

void	setColor (const string col)
	Set the color by name. More...

Color	getColor () const
	Get the current color of the element. More...

void	setOpacity (double opacity)

double	getOpacity ()

void	setShape (const Shape &shp)
	Set the shape of the element. More...

Shape	getShape () const
	Returns the shape of the element. More...

void	setLocation (const double &locX, const double &locY)

double	getLocationX () const

double	getLocationY () const

Public Member Functions inherited from bridges::datastructure::DataStructure
virtual	~DataStructure ()=default

Additional Inherited Members
Static Protected Member Functions inherited from bridges::datastructure::Element< E >
static const string	getLinkRepresentation (const LinkVisualizer &lv, const string &src, const string &dest)

Protected Attributes inherited from bridges::datastructure::BSTElement< K, E >
K	key = K()

Protected Attributes inherited from bridges::datastructure::Element< E >
unordered_map< Element *, LinkVisualizer >	links

Constructor & Destructor Documentation

◆ AVLTreeElement()

template<typename K , typename E >

bridges::datastructure::AVLTreeElement< K, E >::AVLTreeElement	(	const K &	k,
		const E &	val = `E()`,
		const string &	lab = `string()`
	)

inline

Constructs a AVLTreeElement with the provided value, label, key, setting the left and right AVLTreeElements to NULL. The defaults will be used if not provided.

Parameters

k	The key for ordering
val	The data to hold
lab	The label to show

Member Function Documentation

◆ getBalanceFactor()

template<typename K , typename E >

int bridges::datastructure::AVLTreeElement< K, E >::getBalanceFactor ( ) const

inline

Get balance factor of this node

Returns: The balance factor of this AVLTreeElement

◆ getDStype()

template<typename K , typename E >

virtual const string bridges::datastructure::AVLTreeElement< K, E >::getDStype ( ) const

inlineoverridevirtual

Return the data structure name

Returns: the data structure type

Reimplemented from bridges::datastructure::BSTElement< K, E >.

◆ getHeight()

template<typename K , typename E >

int bridges::datastructure::AVLTreeElement< K, E >::getHeight ( ) const

inline

Get the height of the tree

Returns: The height of this AVLTreeElement

◆ getLeft() [1/2]

template<typename K , typename E >

virtual AVLTreeElement* bridges::datastructure::AVLTreeElement< K, E >::getLeft ( )

inlineoverridevirtual

Gets the left child

Returns: The left child

Reimplemented from bridges::datastructure::BSTElement< K, E >.

◆ getLeft() [2/2]

template<typename K , typename E >

virtual const AVLTreeElement* bridges::datastructure::AVLTreeElement< K, E >::getLeft ( ) const

inlineoverridevirtual

Gets the left child - Constant version

Returns: The left child

Reimplemented from bridges::datastructure::BSTElement< K, E >.

◆ getRight() [1/2]

template<typename K , typename E >

virtual AVLTreeElement* bridges::datastructure::AVLTreeElement< K, E >::getRight ( )

inlineoverridevirtual

Return the right child

Returns: The right child

Reimplemented from bridges::datastructure::BSTElement< K, E >.

◆ getRight() [2/2]

template<typename K , typename E >

virtual const AVLTreeElement* bridges::datastructure::AVLTreeElement< K, E >::getRight ( ) const

inlineoverridevirtual

Return the right child - Constant version

Returns: The right child

Reimplemented from bridges::datastructure::BSTElement< K, E >.

◆ setBalanceFactor()

template<typename K , typename E >

void bridges::datastructure::AVLTreeElement< K, E >::setBalanceFactor ( const int & bf )

inline

Set the balance factor to "bf"

Parameters

bf	The balance factor of this AVLTreeElement
bf	the balance factor to set at this node

◆ setHeight()

template<typename K , typename E >

void bridges::datastructure::AVLTreeElement< K, E >::setHeight ( const int & h )

inline

Set the height to "h"

Parameters

h	the height of the tree at this node

◆ setLeft()

template<typename K , typename E >

void bridges::datastructure::AVLTreeElement< K, E >::setLeft ( AVLTreeElement< K, E > * l )

inline

Sets left child to "l"

Parameters

l	The left tree element

◆ setRight()

template<typename K , typename E >

void bridges::datastructure::AVLTreeElement< K, E >::setRight ( AVLTreeElement< K, E > * r )

inline

Sets right child to "r"

Parameters

r	The right BSTElement

The documentation for this class was generated from the following file:

/home/erik/work/bridges/bridges-cxx/src/AVLTreeElement.h
