bridges::datastructure::BinTreeElement< E > Class Template Reference

#include <BinTreeElement.h>

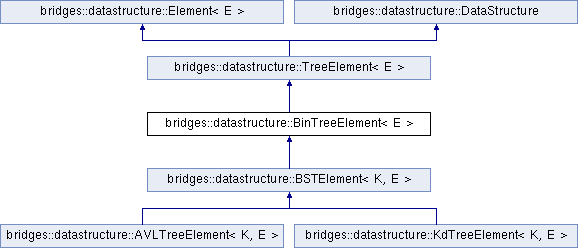

Inheritance diagram for bridges::datastructure::BinTreeElement< E >:

Detailed Description

template<typename E>
class bridges::datastructure::BinTreeElement< E >

This class can be used to create binary tree elements, derived from TreeElement.

This class can be used to create binary tree elements, with left and right children.

See also

There is a tutorial about Binary Trees : http://bridgesuncc.github.io/tutorials/BinTree.html

Parameters

E	the application data type

Author

Kalpathi Subramanian

Date

6/12/15, 7/12/19

Public Member Functions
	BinTreeElement (BinTreeElement *l, BinTreeElement *r, const E &e=E(), const string &lab=string())
	BinTreeElement (const E &e=E(), const string &lab=string())
virtual const string	getDStype () const override
virtual BinTreeElement *	getLeft ()
virtual const BinTreeElement *	getLeft () const
void	setLeft (BinTreeElement *l)
virtual BinTreeElement *	getRight ()
virtual const BinTreeElement *	getRight () const
void	setRight (BinTreeElement *r)
Public Member Functions inherited from bridges::datastructure::TreeElement< E >
	TreeElement (const E &e=E(), const string &lab=string())
vector< TreeElement * > &	getChildren ()
const vector< TreeElement * > &	getChildren () const
TreeElement *	getChild (const int &n)
const TreeElement *	getChild (const int &n) const
void	addChild (TreeElement *child)
void	setChild (const size_t &index, TreeElement *kid)
Public Member Functions inherited from bridges::datastructure::Element< E >
	Element (const E &val=E(), const string &lab=string())
	Element (const Element &e)
Element &	operator= (const Element &e)
E &	operator= (E const &e)
virtual	~Element ()
ElementVisualizer *	getVisualizer ()
const ElementVisualizer *	getVisualizer () const
LinkVisualizer *	getLinkVisualizer (const Element *el)
LinkVisualizer *	getLinkVisualizer (const Element *el) const
string const &	getLabel () const
void	setLabel (const string &lab)
E const &	getValue () const
E &	getValue ()
void	setValue (const E &val)
void	setSize (const double &sz)
	Sets size of the element. More...
double	getSize () const
void	setColor (const Color &col)
	Set the color of the Element. More...
void	setColor (const string col)
	Set the color by name. More...
Color	getColor () const
	Get the current color of the element. More...
void	setOpacity (double opacity)
double	getOpacity ()
void	setShape (const Shape &shp)
	Set the shape of the element. More...
Shape	getShape () const
	Returns the shape of the element. More...
void	setLocation (const double &locX, const double &locY)
double	getLocationX () const
double	getLocationY () const
Public Member Functions inherited from bridges::datastructure::DataStructure
virtual	~DataStructure ()=default

Additional Inherited Members
Protected Member Functions inherited from bridges::datastructure::Element< E >
virtual const string	getElementRepresentation () const
Static Protected Member Functions inherited from bridges::datastructure::Element< E >
static const string	getLinkRepresentation (const LinkVisualizer &lv, const string &src, const string &dest)
Protected Attributes inherited from bridges::datastructure::Element< E >
unordered_map< Element *, LinkVisualizer >	links

Constructor & Destructor Documentation

BinTreeElement() [1/2]

template<typename E >

bridges::datastructure::BinTreeElement< E >::BinTreeElement ( BinTreeElement< E > *  l, BinTreeElement< E > *  r, const E &  e = E(), const string &  lab = string()  )

inline

Constructs a BinTreeElement with the provided value, label, left and right BinTreeElements. The defaults will be used if not provided.

Parameters

e	The data to hold
lab	The label to show
l	The left TreeElement
r	The right TreeElement

BinTreeElement() [2/2]

template<typename E >

bridges::datastructure::BinTreeElement< E >::BinTreeElement ( const E &  e = E(), const string &  lab = string()  )

inline

Constructs a BinTreeElement with the provided value and label, setting the left and right BinTreeElement to NULL. The defaults will be used if not provided.

Parameters

e	The data to hold
lab	The label to show

Member Function Documentation

getDStype()

template<typename E >

virtual const string bridges::datastructure::BinTreeElement< E >::getDStype ( ) const

inlineoverridevirtual

Returns

the data structure type

Reimplemented from bridges::datastructure::TreeElement< E >.

Reimplemented in bridges::datastructure::KdTreeElement< K, E >, bridges::datastructure::BSTElement< K, E >, and bridges::datastructure::AVLTreeElement< K, E >.

getLeft() [1/2]

template<typename E >

virtual BinTreeElement* bridges::datastructure::BinTreeElement< E >::getLeft ( )

inlinevirtual

Returns the left child

Returns

The left BinTreeElement

Reimplemented in bridges::datastructure::KdTreeElement< K, E >, bridges::datastructure::BSTElement< K, E >, and bridges::datastructure::AVLTreeElement< K, E >.

getLeft() [2/2]

template<typename E >

virtual const BinTreeElement* bridges::datastructure::BinTreeElement< E >::getLeft ( ) const

inlinevirtual

Returns the left child - Constant version

Returns

The left BinTreeElement

Reimplemented in bridges::datastructure::KdTreeElement< K, E >, bridges::datastructure::BSTElement< K, E >, and bridges::datastructure::AVLTreeElement< K, E >.

getRight() [1/2]

template<typename E >

virtual BinTreeElement* bridges::datastructure::BinTreeElement< E >::getRight ( )

inlinevirtual

Returns the right child

Returns

The right BinTreeElement

Reimplemented in bridges::datastructure::KdTreeElement< K, E >, bridges::datastructure::BSTElement< K, E >, and bridges::datastructure::AVLTreeElement< K, E >.

getRight() [2/2]

template<typename E >

virtual const BinTreeElement* bridges::datastructure::BinTreeElement< E >::getRight ( ) const

inlinevirtual

Returns the right child - Constant version

Returns

The right BinTreeElement

Reimplemented in bridges::datastructure::KdTreeElement< K, E >, bridges::datastructure::BSTElement< K, E >, and bridges::datastructure::AVLTreeElement< K, E >.

setLeft()

template<typename E >

void bridges::datastructure::BinTreeElement< E >::setLeft ( BinTreeElement< E > *  l )

inline

Sets left child to "l"

Parameters

l	left child pointer

setRight()

template<typename E >

void bridges::datastructure::BinTreeElement< E >::setRight ( BinTreeElement< E > *  r )

inline

Sets right to "r"

Parameters

r	right child pointer

---

The documentation for this class was generated from the following file:

• /home/erik/work/bridges/bridges-cxx/src/BinTreeElement.h
