bridges::datastructure::BSTElement< K, E > Class Template Reference

#include <BSTElement.h>

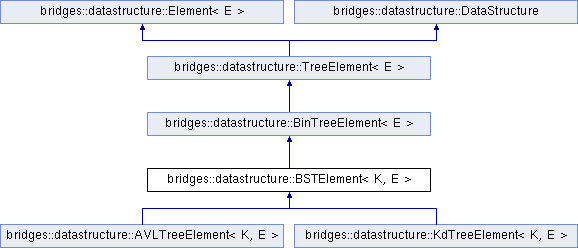

Inheritance diagram for bridges::datastructure::BSTElement< K, E >:

Detailed Description

template<typename K, typename E>
class bridges::datastructure::BSTElement< K, E >

This class can be used to create binary search tree elements, derived from BinTreeElement.

This class extends the BinTreeElement class by adding a "key" property to allow for use in a binary search tree implementation.

Generic Parameters: K that is the search key type, E the application data type

See also

There is a tutorial about Binary Search Trees : http://bridgesuncc.github.io/tutorials/BinarySearchTree.html

Author

Kalpathi Subramanian

Date

6/18/15, 7/17/16, 7/12/19

Public Member Functions
	BSTElement (const K &k, BSTElement *l, BSTElement *r, const E &val=E(), const string &lab=string())
	BSTElement (const K &k, const E &val=E(), const string &lab=string())
virtual const string	getDStype () const override
K	getKey () const
void	setKey (const K &k)
virtual BSTElement *	getLeft () override
virtual const BSTElement *	getLeft () const override
void	setLeft (BSTElement *l)
virtual BSTElement *	getRight () override
virtual const BSTElement *	getRight () const override
void	setRight (BSTElement *r)
Public Member Functions inherited from bridges::datastructure::BinTreeElement< E >
	BinTreeElement (BinTreeElement *l, BinTreeElement *r, const E &e=E(), const string &lab=string())
	BinTreeElement (const E &e=E(), const string &lab=string())
void	setLeft (BinTreeElement *l)
void	setRight (BinTreeElement *r)
Public Member Functions inherited from bridges::datastructure::TreeElement< E >
	TreeElement (const E &e=E(), const string &lab=string())
vector< TreeElement * > &	getChildren ()
const vector< TreeElement * > &	getChildren () const
TreeElement *	getChild (const int &n)
const TreeElement *	getChild (const int &n) const
void	addChild (TreeElement *child)
void	setChild (const size_t &index, TreeElement *kid)
Public Member Functions inherited from bridges::datastructure::Element< E >
	Element (const E &val=E(), const string &lab=string())
	Element (const Element &e)
Element &	operator= (const Element &e)
E &	operator= (E const &e)
virtual	~Element ()
ElementVisualizer *	getVisualizer ()
const ElementVisualizer *	getVisualizer () const
LinkVisualizer *	getLinkVisualizer (const Element *el)
LinkVisualizer *	getLinkVisualizer (const Element *el) const
string const &	getLabel () const
void	setLabel (const string &lab)
E const &	getValue () const
E &	getValue ()
void	setValue (const E &val)
void	setSize (const double &sz)
	Sets size of the element. More...
double	getSize () const
void	setColor (const Color &col)
	Set the color of the Element. More...
void	setColor (const string col)
	Set the color by name. More...
Color	getColor () const
	Get the current color of the element. More...
void	setOpacity (double opacity)
double	getOpacity ()
void	setShape (const Shape &shp)
	Set the shape of the element. More...
Shape	getShape () const
	Returns the shape of the element. More...
void	setLocation (const double &locX, const double &locY)
double	getLocationX () const
double	getLocationY () const
Public Member Functions inherited from bridges::datastructure::DataStructure
virtual	~DataStructure ()=default

Protected Member Functions
virtual const string	getElementRepresentation () const override

Protected Attributes
K	key = K()
Protected Attributes inherited from bridges::datastructure::Element< E >
unordered_map< Element *, LinkVisualizer >	links

Additional Inherited Members
Static Protected Member Functions inherited from bridges::datastructure::Element< E >
static const string	getLinkRepresentation (const LinkVisualizer &lv, const string &src, const string &dest)

Constructor & Destructor Documentation

BSTElement() [1/2]

template<typename K , typename E >

bridges::datastructure::BSTElement< K, E >::BSTElement ( const K &  k, BSTElement< K, E > *  l, BSTElement< K, E > *  r, const E &  val = E(), const string &  lab = string()  )

inline

Constructs a BSTElement with the provided value, label, key, left and right BSTElements. The defaults will be used if not provided.

Parameters

k	The key for ordering
l	The left BSTElement
r	The right BSTElement
val	The data to hold
lab	The label to show

BSTElement() [2/2]

template<typename K , typename E >

bridges::datastructure::BSTElement< K, E >::BSTElement ( const K &  k, const E &  val = E(), const string &  lab = string()  )

inline

Constructs a BSTElement with the provided value, label, key, setting the left and right BSTElements to NULL. The defaults will be used if not provided.

Parameters

k	The key for ordering
val	The data to hold
lab	The label to show

Member Function Documentation

getDStype()

template<typename K , typename E >

virtual const string bridges::datastructure::BSTElement< K, E >::getDStype ( ) const

inlineoverridevirtual

Returns the data structure name

Returns

the data structure name

Reimplemented from bridges::datastructure::BinTreeElement< E >.

Reimplemented in bridges::datastructure::KdTreeElement< K, E >, and bridges::datastructure::AVLTreeElement< K, E >.

getElementRepresentation()

template<typename K , typename E >

virtual const string bridges::datastructure::BSTElement< K, E >::getElementRepresentation ( ) const

inlineoverrideprotectedvirtual

Gets the JSON representation of this element

Reimplemented from bridges::datastructure::Element< E >.

Reimplemented in bridges::datastructure::KdTreeElement< K, E >.

getKey()

template<typename K , typename E >

K bridges::datastructure::BSTElement< K, E >::getKey ( ) const

inline

Returns the key value

Returns

The key of this BSTElement

getLeft() [1/2]

template<typename K , typename E >

virtual BSTElement* bridges::datastructure::BSTElement< K, E >::getLeft ( )

inlineoverridevirtual

Return the left child

Returns

The left child

Reimplemented from bridges::datastructure::BinTreeElement< E >.

Reimplemented in bridges::datastructure::KdTreeElement< K, E >, and bridges::datastructure::AVLTreeElement< K, E >.

getLeft() [2/2]

template<typename K , typename E >

virtual const BSTElement* bridges::datastructure::BSTElement< K, E >::getLeft ( ) const

inlineoverridevirtual

Return the left child - Constant version

Returns

The left child

Reimplemented from bridges::datastructure::BinTreeElement< E >.

Reimplemented in bridges::datastructure::KdTreeElement< K, E >, and bridges::datastructure::AVLTreeElement< K, E >.

getRight() [1/2]

template<typename K , typename E >

virtual BSTElement* bridges::datastructure::BSTElement< K, E >::getRight ( )

inlineoverridevirtual

Return the right child

Returns

The right child

Reimplemented from bridges::datastructure::BinTreeElement< E >.

Reimplemented in bridges::datastructure::KdTreeElement< K, E >, and bridges::datastructure::AVLTreeElement< K, E >.

getRight() [2/2]

template<typename K , typename E >

virtual const BSTElement* bridges::datastructure::BSTElement< K, E >::getRight ( ) const

inlineoverridevirtual

Return the right child - Constant version

Returns

The right child

Reimplemented from bridges::datastructure::BinTreeElement< E >.

Reimplemented in bridges::datastructure::KdTreeElement< K, E >, and bridges::datastructure::AVLTreeElement< K, E >.

setKey()

template<typename K , typename E >

void bridges::datastructure::BSTElement< K, E >::setKey ( const K &  k )

inline

Set key to "k"

Parameters

k	The key of this BSTElement

setLeft()

template<typename K , typename E >

void bridges::datastructure::BSTElement< K, E >::setLeft ( BSTElement< K, E > *  l )

inline

Sets left to "l"

Parameters

l	The left child

setRight()

template<typename K , typename E >

void bridges::datastructure::BSTElement< K, E >::setRight ( BSTElement< K, E > *  r )

inline

Sets right child to "r"

Parameters

r	The right BSTElement

Member Data Documentation

key

template<typename K , typename E >

K bridges::datastructure::BSTElement< K, E >::key = K()

protected

---

The documentation for this class was generated from the following file:

• /home/erik/work/bridges/bridges-cxx/src/BSTElement.h
