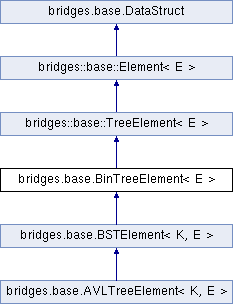

Inheritance diagram for bridges.base.BinTreeElement< E >:

Public Member Functions
	BinTreeElement ()

	BinTreeElement (E e)

	BinTreeElement (String label, E e)

	BinTreeElement (BinTreeElement< E > left, BinTreeElement< E > right)

	BinTreeElement (E e, BinTreeElement< E > left, BinTreeElement< E > right)

String	getDataStructType ()

BinTreeElement< E >	getLeft ()

void	setLeft (BinTreeElement< E > left)

BinTreeElement< E >	getRight ()

void	setRight (BinTreeElement< E > right)

Public Member Functions inherited from bridges.base.TreeElement< E >
	TreeElement ()

	TreeElement (E e)

	TreeElement (String label, E e)

	TreeElement (TreeElement< E > left, TreeElement< E > right)

	TreeElement (E e, TreeElement< E > left, TreeElement< E > right)

String	getDataStructType ()

void	addChild (TreeElement< E > child)

int	getNumberOfChildren ()

void	setChild (int index, TreeElement< E > child)

TreeElement< E >	getChild (int index)

Public Member Functions inherited from bridges.base.Element< E >
	Element ()

	Element (E val)

	Element (String label, E val)

	Element (Element< E > original)

String	getIdentifier ()

ElementVisualizer	getVisualizer ()

void	setVisualizer (ElementVisualizer visualizer)

LinkVisualizer	getLinkVisualizer (Element< E > el)

String	getClassName ()

int	compareTo (Element< E > e1)

boolean	equals (Element< E > e1)

String	getRepresentation ()

String	getLabel ()

void	setLabel (String label)

String	arrangeLabel (String label, int wordNumber)

E	getValue ()

void	setValue (E value)

String	toString ()

Additional Inherited Members
Protected Member Functions inherited from bridges.base.Element< E >
String	getDataStructType ()

void	validateVal (E value)

Protected Member Functions inherited from bridges.base.DataStruct
abstract String	getDataStructType ()

Protected Attributes inherited from bridges.base.DataStruct
String	QUOTE = "\""

Detailed Description

Author: mihai Mehedint, K.R. Subramanian

This class can be used to create tree element objects with left and right pointers

Added to be a subclass of TreeElement (6/22/16), KRS

Constructor & Destructor Documentation

bridges.base.BinTreeElement< E >.BinTreeElement ( )

Constructs an empty Binary Tree Element with right and left pointers set to null.

bridges.base.BinTreeElement< E >.BinTreeElement ( E e )

Constructs a TreeElement holding an object "e" with right and left pointers set to null.

Parameters

e	the generic object that TreeElement will hold

bridges.base.BinTreeElement< E >.BinTreeElement	(	String	label,
		E	e
	)

Constructs a TreeElement with label set to "label", holding an object "e".

Parameters

label	the label of TreeElement that shows up on the Bridges visualization
e	the generic object that TreeElement will hold

bridges.base.BinTreeElement< E >.BinTreeElement	(	BinTreeElement< E >	left,
		BinTreeElement< E >	right
	)

Constructs an empty TreeElement left pointer pointing to "left" and right pointer pointing to "right".

Parameters

left	the TreeElement to be assigned to the left pointer of this TreeElement
right	the TreeElement to be assigned to the right pointer of this TreeElement

bridges.base.BinTreeElement< E >.BinTreeElement	(	E	e,
		BinTreeElement< E >	left,
		BinTreeElement< E >	right
	)

Constructs a TreeElement holding the object "e", left pointer pointing to "left" and right pointer pointing to "right".

Parameters

e	the generic object that TreeElement will hold
left	the TreeElement to be assigned to the left pointer of this TreeElement
right	the TreeElement to be assigned to the right pointer of this TreeElement

Member Function Documentation

String bridges.base.BinTreeElement< E >.getDataStructType ( )

This method gets the data structure type

Returns: The date structure type as a string

BinTreeElement<E> bridges.base.BinTreeElement< E >.getLeft ( )

This method returns the left tree element pointer

Returns: the left child of this TreeElement

BinTreeElement<E> bridges.base.BinTreeElement< E >.getRight ( )

This method returns the right tree element pointer

Returns: the right child of this TreeElement

void bridges.base.BinTreeElement< E >.setLeft ( BinTreeElement< E > left )

This method sets the left tree element pointer

Parameters

left	the TreeElement that should be assigned to the left child

void bridges.base.BinTreeElement< E >.setRight ( BinTreeElement< E > right )

This method sets the right tree element pointer

Parameters

right the TreeElement that should be assigned to the right child

The documentation for this class was generated from the following file:

link/base/BinTreeElement.java
